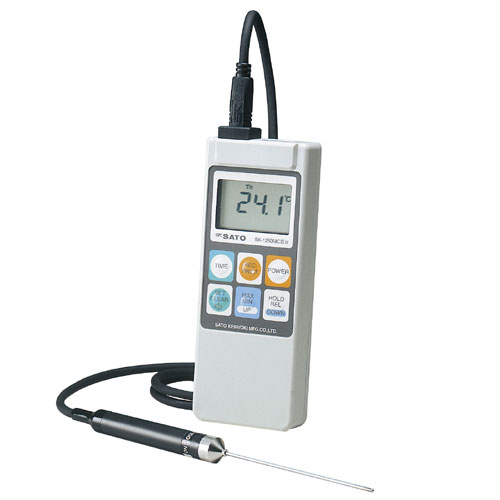

Nhiệt kế điện tử Sato SK-1250MCIII α

Sản Phẩm

Nhiệt kế điện tử Sato SK-1250MCIII α
Giá : Liên hệ
MASP : SK-1250MCIII α
Nhà sản xuất : SATO KEIRYOKI
Various optional probes for SK-1250MCIII α are still available Note: No sensors convertibility for SK-1250MCIII α & SK-1260

Chi tiết Sản phẩm

FEATURES

Measurement values can be stored into memory with a simple operation.
- The memory can store up to 150 measurement values in the manual mode.
- The memory can store up to 100 measurement values in the automatic mode.

Print function
- Temperature values stored in the memory can be printed out with an optional printer.
Setting of upper and lower limits is available.
- If the temperature reaches the upper limit or the lower limit to be set, the warning buzzer sounds and "V" flashes on the panel.
Splash proof
- Conforming to JIS C 0920 (Protection Class 4 ): equivalent to IPX4
- no adverse effects of water splashes from any direction

Both inputs of Thermistor and K Thermocouple are available only from us
Various kinds of optional probes for a wide variety of applications
A large LCD with multi-display
A soft pouch with neck strap is provided as standard accessories

SPECIFICATIONS

Measuring range	Thermistor		-30.0 to 150.0°C
	K Thermocouple		-99.9 to 1250°C
Resolution	Thermistor		0.1°C at -30.0 to 150.0°C
	K Thermocouple		0.1°C at -99.9 to 199.9°C 1°C at 200°C to 1250°C
Accuracy	Thermistor
	Main unit	±0.2°C
	Sensor	±(0.1%rdg + 0.3)°C at 0.0 to 100.0°C
		±(0.2%rdg + 0.4)°C at -30.0 to -0.1°C ,100.1 to 150°C
	K Thermocouple
	Main unit	±(0.1%rdg + 0.3)°C at 0.0 to 199.9°C
		±0.5°C at -99.9 to -0.1°C
		±(0.2%rdg + 1)°C at 200 to 1250°C
	Sensor (JIS class 1)	±1.5°C at -40 to 375 °C
		±0.004 \|t\| at 375 to 1000°C
Operational Functions	MAX : maximum memory data		MIN : minimum memory data
	HOLD : data hold		REL : measurement of variation
	TIME : time settings		REC/PRINT : record and print
	Alarm : upper and lower limit
Waterproof property
	Conforming to JIS C0920 Protection class 4 (equivalent to IPX4)
Sampling time	about 0.3 sec.
Sensor	Thermistor / K Thermocouple
Power requirements	6VDC ("AAA" size battery x 4)
Battery life	About 180 hours continuous with manganese batteries
	About 280 hours continuous with alkali batteries
Materials	Main unit : ABS resin
	Probe	Sensing stem	Stainless (SUS304)
		Handle	Polyphenylen Oxide
Dimensions	Main unit	(W)66 x (H)175 x (D)25 mm
Weight	approx. 200 g (main body including batteries)
Standard Accessories	Standard MC-T100 III probe, vinyl case with strap, "AAA" size manganese battery x 4

OPTION

Optional Printer Model DPU-414
By connecting the optional printer with the SK-1250MCIIIα via an exclusive cable, the data stored in memory can be printed out by simple key operation.
Power requirements	100VAC using AC adapter or built-in battery
Operating ambient	0 to 40°C
Dimensions	(W)160 x (H) 66.5x (D)170mm
Weight	approx. 690 g
Standard accessories	printing paper 1 roll (about 28m), cable for printer

Optional Probes

* Cord used is a super flexible type which resists oil and can be used in a low temperature state.

K Type Thermocouple probes

MC-K100 III
Standard type probe. Range:-100 to 300°C.
Use for semisolid, viscosity and liquid. Ø2.3 x 150mm
w/1.1m cord

MC-K100W III
Waterproof type penetration probe. Range: -100 to 300°C.
Suitable for food industries Ø2.3 x 150mm
w/1.1m cord

MC-K101 III
General purpose probe. Range: -100 to 700°C. Ø3.2 x 250mm w/1.1m cord

MC-K102 III
High temperature probe. Range: 0 to 800°C. Ø4.8 x 500mm w/1.1m cord

MC-K103 III
Asphalt temperature probe. w/ stainless steel grip. Range:0 to 300°C.
Ø5 x 250mm w/1.1m stainless heat resistance cord

MC-K104 III
High sensitivity probe. Range: -100 to 300°C.
Use for viscosity and liquid. Ø1 x 1000mm w/1.1m cord

MC-K105 III
Duplex wire probe (stainless steel shield wire)
Range: -100 to 300°C. Ø0.65 x 10m w/0.3m stainless heat resistance cord

MC-K106 III
Asphalt temperature probe w/ resin grip.
Range: 0 to 300°C. Ø5 x 250mm w/1.1m cord

MC-K107 III
High temperature probe(sensor: inconel alloy) Range:0 to 1000°C. Ø4.8 x 1000mm w/1.1m cord
(Option : Range : 0 to 1250°C :Ø8.0 x 1000mm)

MC-K108 III
Compost temperature probe.
Range:0 to 300°C. Ø8 x 900mm w/1.1m cord.

MC-K109 III
Asphalt temperature probe.
Range:0 to 300°C. Ø5 x 250mm w/1.1m cord.

MC-K301 III
Surface temperature probe. Range:0 to 600°C.
Ø25 x 40mm w/1.1m cord.

MC-K302 III
Surface temperature probe. Range:0 to 600°C.
Sensing part Ø17 x 21mm w/1.1m cord.

MC-K303 III
Surface temperature probe right angle type.
Range:0 to 800°C.
Sensing part Ø10 x 12mm w/1.1m cord.

MC-K304 III
Surface temperature probe.
Range:0 to 300°C. Mount on flat surface with screws.
14 x 17 x t0.6mm w/3m heat resistance cord.

MC-K305 III
Surface temperature probe (flexible in 90^o)
Range: -30 to 500°C.
Sensing part Ø17 x 36mm w/1.1m cord.

MC-K306 III
Point surface temperature. Range: -30 to 250°C.
Sensing part Ø10 x 12mm w/1.1m cord.

MC-K307 III
Surface temperature probe. Range: -30 to 400°C.
Sensing part Ø17 x 25mm w/1.1m cord.

MC-K308 III
L shape type surface temperature probe.
Range:-30 to 600°C.
Sensing part Ø17 x 30mm w/1.1m cord.

MC-K401 III
Temperature probe for curved surface.
Range: 0 to 250°C.
Ø30 x 35 x 60mm w/1.1m cord

MC-K402 III
Surface temperature probe.(roller type)
Range: 0 to 300°C.
Sensing part: 25 x 50 x 25mm
Grip: Ø15 x 90mm w/1.1m cord

MC-K403 III
Surface temperature probe.(w/ magnet)
Range: 0 to 200°C.
Sensing part: Ø30 x 12mm
Grip: Ø15 x 50mm w/1.1m cord

Thermistor Probes

MC-T100 III
Standard type probe. Range:-30 to 150°C. Use for semisolid,
viscosity and liquid. Ø2 x 100 mm w/1.1m cord.

MC-T101 III
Penetration probe. Range:-30 to 150°C. Use for semisolid,
viscosity and liquid. Ø3 x 100mm w/1.1m cord.

MC-T101W III
Waterproof type penetration probe. Range:-30 to 150°C.
Suitable for food industry Ø3 x 120mm w/1.1m cord.

MC-T102 III
Water temperature probe. Range:-30 to 100°C.
Water pressure
resistance type. Ø17 x 115mm w/10m cord.

MC-T103 III
Rectum temperature probe. Range:30.0 to 50.0°C.
Ø3 x 110mm w/1.1m cord

MC-T201 III
Air temperature probe used in offices and warehouses.
Range:-30 to 150°C Ø5 x 150mm w/1.1m cord.
