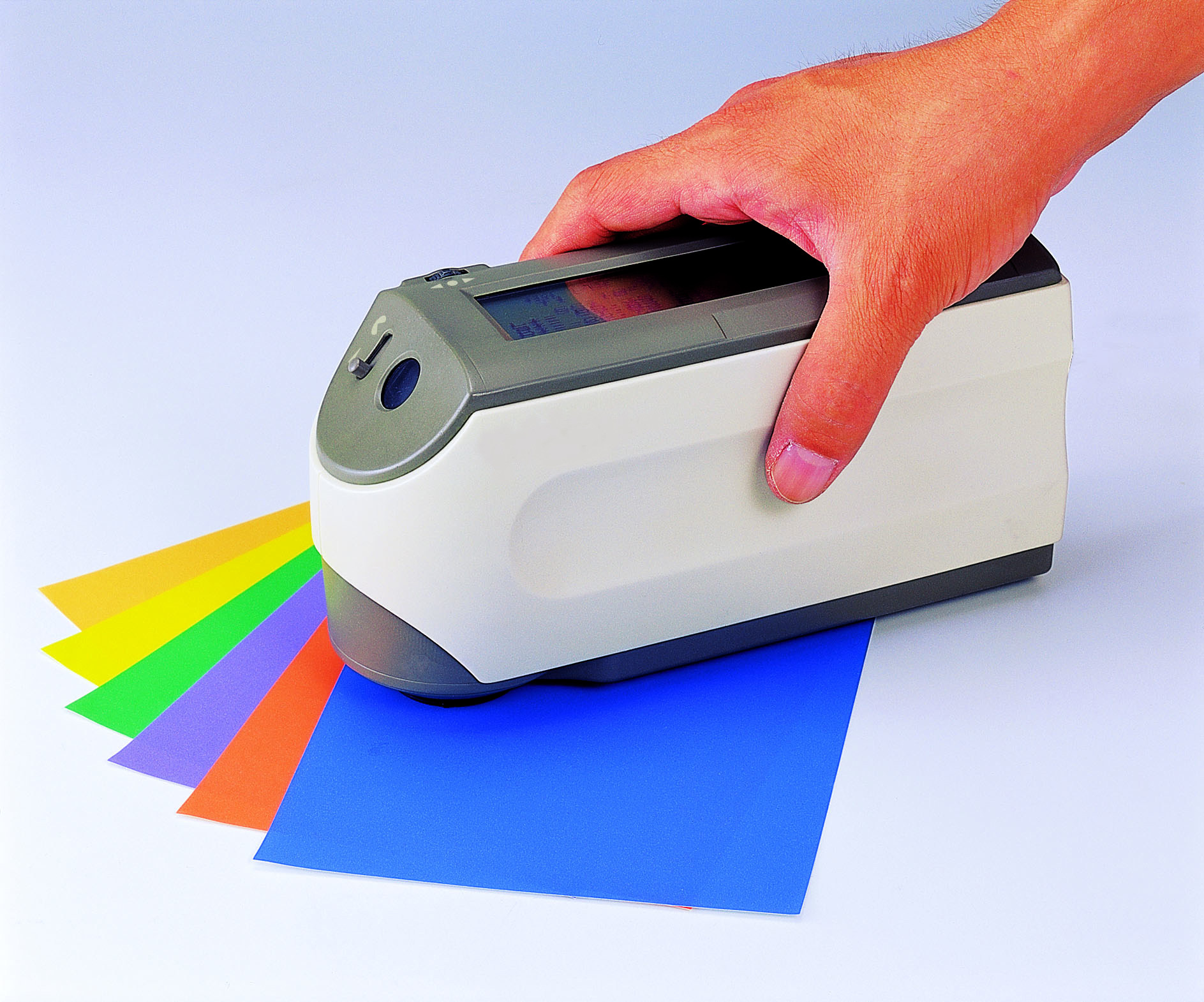

CM-2600d Spectrophotometer
- Model
- CM-2600d
- Illumination / observation system
- d/8 (diffuse illumination, 8-degree viewing ), equipped with simultaneous measurement of SCI (specular component included)/SCE (specular component excluded) Conforms to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7 and JIS Z8722 Condition C standard.
- Sphere Size
- Φ52mm
- Light-receiving element
- Silicon photodiode array (dual 40 elements)
- Spectral separation device
- Diffraction grating
- Wavelength range
- 360nm to 740nm
- Wavelength pitch
- 10nm
- Half bandwidth
- Approx. 10nm
- Reflectance range
- 0 to 175%, resolution: 0.01%
- Light source
- 3 pulsed xenon lamps
- Measurement time
- Approx. 1.5 seconds (approx. 2 seconds for fluorescent measurement)
- Minimum interval between measurements
- 3 seconds for SCI/SCE (4 seconds for fluorescent measurement)
- Battery performance
- Alkaline manganese:approx. 1000 measurements
- Measurement/illumination area
- MAV : Φ8mm/Φ11mm
SAV : Φ3mm/6mm (Selectable between MAV and SAV)
- Repeatability
- Spectral Reflectance:Standard deviation within 0.1% (360 to 380nm within 0.2%)
Colorimetric Value : Standard deviation within ΔE*ab 0.04(Measurement conditions:White calibration plate measured 30 times at 10-second intervals after white calibration was performed)
- Inter instrument agreement
- withinΔE*ab 0.2 (MAV/SCI) Average for 12BCRA Series II color tiles compared to values measured with master body.
- UV adjustment
- Instantaneous numerical adjustment (no mechanical adjustment required) With UV400nm cut filter
- Measurement mode
- Single measurement/automatic averaging of multiple measurements(auto mode: 3, 5, 8 times/manual mode)
- Output
- RS-232C serial signals via RJ45 connector; USB 2.0 communication possible when using included USB-Serial Converter Cable IF-A24
- Observer
- 2/10 degrees (CIE 1931/2°,CIE 1964/10°)
- Illuminant
- A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (simultaneous evaluation is possible using two light sources)
- Display data
- Spectral value/graph, colorimetric value, color difference value/graph, PASS/FAIL result
- Color space / colorimetric data
- L*a*b*, L*C*h, CMC (1:1), CMC (2:1), CIE94, Hunter Lab, Yxy, Munsell, XYZ, MI, WI (ASTM E313), YI (ASTM E313/ASTM D1925), ISO Brightness (ISO 2470), Density statusA /T, WI/Tint (CIE/Ganz), CIE00
- Data memory
- 1700 pieces of data (as SCI/SCE 1 data) * 700 pieces of data in the "defined in COND." mode.
* Total of the sample data for the COND and TASK modes and color diference target data
- Tolerance judgment
- Tolerance for color difference (both box and eliptical tolerances can be set)
- Power source
- 4 AA-size battery or AC adapter
- Size (W×H×D)
- 69 × 96 × 193mm
- Weight
- Approx. 670g (without batteries)
- Operating temperature / humidity range (*1)
- 5 to 40°C, relative humidity 80% or less (at 35°C) with no condensation
- Storage temperature/humidity range
- 0 to 45°C, relative humidity 80% or (at 35°C) with no condensation
- Standard accessories
- White calibration plate, Target mask Φ8mm, Target mask Φ3mm , RS-232C cable, AC adapter,AA-size battery (×4)
- Optional Accessories
- Hard case, Dust cover set, Dust cover, SpectraMagic™NX (software), Zero calibration box
∗1 Operating temperature/humidity range of products for North America : 5 to 40°C, relative humidity 80% or less (at 31°C) with no condensation
