Máy Phân Tích Màu KONICA CL-200A

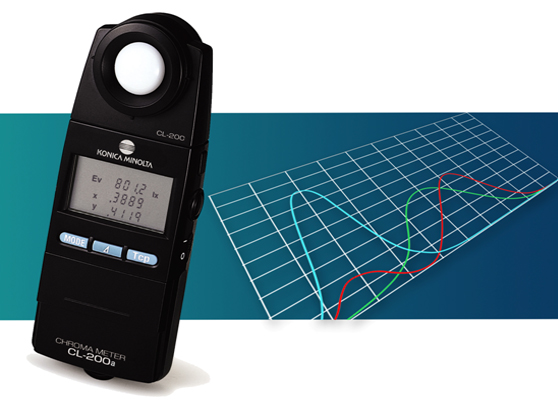

CL-200A Chroma Meter

Relative Spectral Response

Closely matches CIE Standard Observer curves X(λ), y(λ), and Z(λ) Within 6%(f1’) of the CIE spectral luminous effeciency V(λ)

Cosine response(f2)

Ev: Within 3%

Receptor

Silicon photocell

Measuring function

Tristimulus values:XYZ
Chromaticity : Ev xy, Ev u’v’
Correlated color temperature: Ev, Tcp, Δuv
Color difference: Δ(XYZ), Δ(Ev, xy), Δ(Ev u’v’), ΔEv Δu’v’

Other function

User calibration function, Data hold function,
Multi-point measurement(2 to 30 points)

Measuring range

0.1∼99,990lx, 0.01∼9,999 fcd(Chromaticity:5 lx, 0.5 fcd or above) in four automatically selected ranges(lx or fcd is swichable)

Accuracy

Ev: ±2%±1digit of displayed value
xy: ±0.002(800lx, standardilluminant A measured)

Repeatability

Ev: 0.5%+1 digit(2σ)
xy: ±0.0005

Temperature drift

Ev: ±3%±1digit of displayed value,
xy: ±0.003

Humidity drift

Ev: ±3%±1digit of displayed value,
xy: ±0.003

Response time

0.5 sec.(continuous measurement)

Digital output

USB 2.0 full-speed

Display

4 Significant-digit LCD with back-light illumination

Operating temperature/ Humidity range

-10 to 40°C, relative humidity 85% or less
(at 35°C) with no condensation

Storage temperature/ Humidity range

-20 to 55°C, relative humidity 85% or less
(at 35°C) with no condensation

Power source

2 AA-size batteries/AC adapter (optional)

Battery life

72 hours or longer (when alkaline bateries are used) in continuous measurement

Dimentions

69x174x35mm

Weight

215g(7.6 oz.) not including batteries

Standard accessories

Case T-A10, Cap T-A13, Neck Strap, batteries, Data Management Software CL-S10w, Connecting Cable T-A15

Optional accessories

Recepter Head, Adapter Unit for Main Body T-A20,
Adapter Unit for Receptor Head T-A21,
AC Adapter AC-308(available for 1 to 10 Receptor Heads)
AC Adapter AC-311(available for 1 to 30 Receptor Heads)
Printer Cable T-A12, Hood CL-A11, Case CL-A10

Data Management Software CL-S107w Specification

Software type

MicroSoft Excel add-in software Excel is required for operation of this software

Operatins Systems

Windows XP + Excel 2003 (Japanese, English,Chinese)
Windows 7 + Excel 2003 (Japanese, English, Chinese)

Hardware to connect

CL-200A CL-200 some of the functions are not available when connected with the CL-200

∗Specfications are subject to change without notice.

∗Company names and product names mentioned here are the registered trademarks or trademarks of their respective caompanies.
