MÁY NỘI SOI KỸ THUẬT SỐ IRIS DVR 5

Sản Phẩm

MÁY NỘI SOI KỸ THUẬT SỐ IRIS DVR 5
Giá : Liên hệ
MASP : iRis DVR 5
Nhà sản xuất : IT CONCEPTS

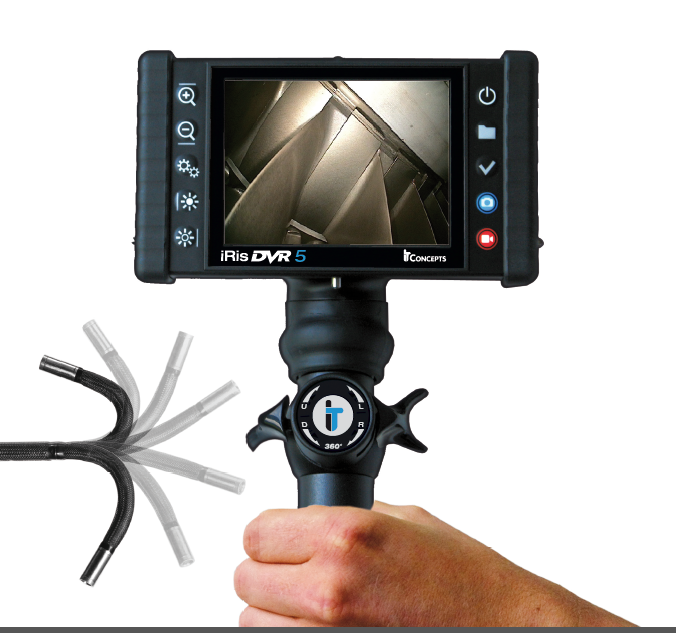

With the new iRis DVR 5 videoscope, still images or video sequences of remote visual inspections are captured in brilliant image quality with the high resolution CCD image sensor. Any movement of a component or the drop of a leak is displayed on the 12,7 cm (5 “) large VGA screen and saved to a SD memory card up to 32GB. In addition, the iRis DVR 5 is the world’s first compact video-endoscope with a 180° rotating handle and a rotatable 180° screen. Adjust your screen for optimized view and/or rotate the scope handle for a comfortable operation of the tip articulation of the distal end, either if the user is left – or right-handed. Extremely compact dimensions, minimal weight (1.35 kg), lithium-ion-battery, 3-stage adjustable LED light source and the easy handling are the outstanding features of the iRis DVR 5 videoscope. The videoscope system is available in different endoscope diameters and working lengths.

Chi tiết Sản phẩm

Features:

Ergonomic:
180⁰ rotatable screen and handle for comfortable operations and optimal viewing position

Large Display:
Brilliant 5″ TFT VGA display provides razor-sharp images even for outdoor viewing

1.35 kg:
Extremely compact and light. Mobile all-in-one portable videoscope for inspection even in the tightest and most remote spaces

Video and Image Capture:
Digital recording of video and images with a single touch of a button

Integrated LED:
Integrated high-power LED light source characterized by high intensity white light with more than 5,000 hours of operating time and low energy consumption.

Light Intensity Control:
3-stage adjustable high-power LED achieves optimum illumination of the inspection object.

Video Out:
Composite video output allows the connection of additional external monitor or screens for live multiple participant viewing

CCD image sensor:
The iRis DVR 5 Videoscope image is produced by a super hi-resolution CCD camera chip that yields a superior image and color representation in the darkest area.

4-way Articulation:
Responsive and precise tip articulation control with constant articulation lock

SmartFocus:
Close focus and far focus with only one objective lens

Interchangeable objective lens:
The iRis DVR 5 Videoscope offers a complete range of forward and side view tip opics. Multiple fields of view, depths of field allow you to choose the perfect image for your application.

Lithium-Ion Battery:
A rechargeable high capacity battery offers more than 2 hours of operation. The iRis 5 Video Borescope can also be operated with the AC adapter.

Technical Specifications:

Operating unit

Display size: 5.0“ (12.7cm) TFT color
Display resolution: VGA (640×480 pixel)
Operating system: Real-time operating system, with on-screen menu
User interface: Direct action keys / function keys / arrow keys
Languages: English, German, Polish, French, Spanish, Italian, and Turkish
Video interface: Composite video-out (BNC)
Power supply, primary: Rechargeable Li-ion battery (3Hour Operation Time)
Power supply, secondary: 12V adapter (optional accessory)

Documentation

Video format: AVI (.avi) (with time and date stamp)
Image format: BMP (.bmp) (with time and date stamp)
Storage: SDHC memory card up to 32GB (FAT32) (8GB is provided in delivery set)

Camera control

Image sensor: High resolution Super HAD CCD image sensor
White balance: Factory default or user defined
AGC level (gain control): Adjustable
Gamma: Adjustable

Image control

Zoom: 16 step digital zoom
Invert: Horizontal and vertical image inversion
Brightness: Adjustable
Contrast: Adjustable
Color: Adjustable
Text annotation: Built-in full screen text overlay generator

Illumination

Type: High-power LED with high transmission fiber optics
Illumination control: 3 steps
Color temperature: approx. 6500k
Average lamp lifetime: approx. 5000h

Probe

Diameter:	4.0mm	6.0mm	8.0mm
Working Length:	1.5 – 4.0m	1.5 – 7.5m	1.5 – 15.0m
Articulation (bending neck):	4-way / 360° control	4-way / 360° control	4-way / 360° control
Articulation angle L/R \| U/D:	100°/100° \| 100°/100°	100°/100° \| 160°/130°	100°/100° \| 160°/130°
Integrated objective lens:	✔	-	-
Interchangeable objective lens:	-	✔	✔
Side view adapter:	✔	✔	✔
Braid:	Multi-layer tungsten braid on PU jacket

Interchangeable Objective Lenses & SVTA

PROBE	DOV	FOV	DOF	COLOR CODE
4.0mm	0°	60°	7-50mm
4.0mm	0°	60°	4-10mm	SD
4.0mm	0°	90°	15mm-∞
4.0mm	0°	90°	10-30mm	SD
4.0mm**	90°	60°	5-45mm	SVTA
6.0mm	0°	60°	5mm-∞	BLACK
6.0mm	0°	90°	5mm-∞	RED
6.0mm	0°	120°	3mm-∞	GREEN
6.0mm**	90°	60°	5-15mm	SVTA-CF
6.0mm**	90°	60°	15-50mm	SVTA-FF
8.0mm	0°	28°	25mm-∞	BLUE
8.0mm	0°	60°	8mm-∞	YELLOW-B
8.0mm	0°	60°	10mm-∞	BLACK
8.0mm	0°	90°	5mm-∞	SILVER-B
8.0mm	0°	90°	5mm-∞	RED
8.0mm**	90°	60°	5mm-∞	SVTA

DOV = Direction of View
FOV = Field of View
DOF = Depth of Focus
SVTA = Side View Tip Adapter
CF = Close Focus
FF = Far Focus
B = Bright Objective Lens
** Compatible with 60° FOV 4mm iRis DVR 5 Videoscope

Construction

Ergonomics: ± 90° rotatable display unit, alt. ±90° rotatable scope handle
System weight: 1.35Kg (2.9 Lb)
Dimensions: 180mm x 105mm x 45mm
Housing: Rugged PU, with integrated rubber shock caps
Protection class: IP53

Operating environment

Tip operating temperature: -13°F to 176°F (-25°C to +80°C) (284°F/140°C less than 5 Minutes)
System operating temperature: -13°F to 115°F (-25°C to +46°C)
Storage temperature: -13°F to 140°F (-25°C to +60°C)
Relative humidity: 95% max. – non condensing
Waterproof: Probe and distal end up to 14.7 psi (1 bar- 10.2m H2O)
Resistance: Probe and distal end to oils and saline (5%)
Carrying Case 508mm x 373mm x 147mm / 4,5kg
