Sản Phẩm

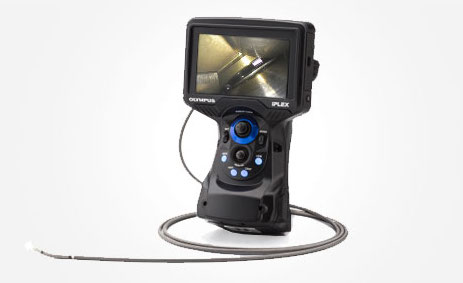

  • Máy nội soi ckỹ thuật số IPLEX G Lite

  • Giá : Liên hệ
  • MASP : IPLEX G Lite
  • Nhà sản xuất : OLYMPUS JAPAN
  • The Portable, Powerful Videoscope The IPLEX G Lite industrial videoscope packs powerful imaging capabilities into a small, rugged body. Lightweight and able to go almost anywhere, users working in challenging applications have a remote visual inspection tool with the image quality and ease of use to get the job done.

Chi tiết Sản phẩm

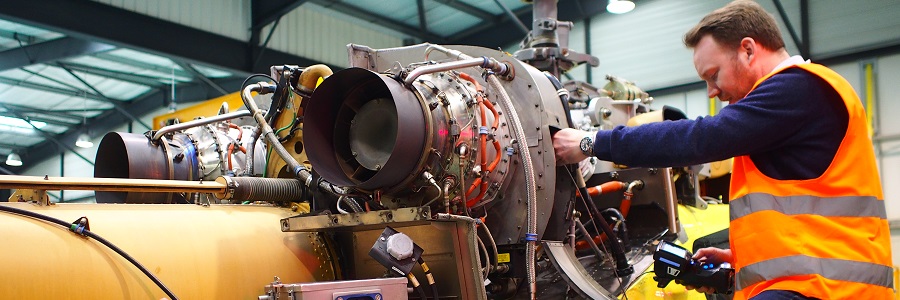

Go Anywhere

Lightweight, rugged, and goes almost anywhere

Go Anywhere



True to Your Image

Clear, bright images aid in your decision-making

True to your image



Fast & Easy

Designed to make your inspections fast and efficient

Fast and easy

BASIC FUNCTIONS

Model No. IV9420GL IV9435GL IV9620GL IV9635GL IV96100GL
Insertion tube Scope diameter Φ4.0 mm Φ6.0 mm
Scope length 2.0 m 3.5 m 2.0 m 3.5 m 10.0 m
Exterior High-durability tungsten braid
Tube flexibility Uniform stiffness TaperedFlex tube with flexibility gradually
increasing toward the distal end
Temperature sensor 2-stage indicator for high temperature warning
Articulation section Articulation angle
up/down/right/left
130° 150° 110°
Articulation operation TrueFeel scope tip articulation with electronic articulation
Approx. system weight (with battery) 1.15 kg (2.5 lbs) 1.21 kg (2.6 lbs) 1.23 kg (2.7 lbs) 1.34 kg (2.9 lbs) 1.83 kg (4.0 lbs)
Dimensions (W x D x H)  128 mm × 203 mm × 110 mm (5 in. × 8 in. × 4.3 in.)
Dimensions of carrying case 455 mm × 330 mm × 185 mm (18 in. × 13 in. × 7.2 in.) (carry-on size on most airlines)
Illumination LED illumination
※Extend the life of the battery by using the ECO mode lighting control
Display 4.3-inch WVGA LCD with capacity-type touch panel
Power supply AC power 100 V to 240 V, 50/60 Hz (with supplied AC adaptor)
Battery 7.4 V nominal, approx. (with supplied battery)
Battery operation time:approx. 90minutes
Video output standard HDMI Type C  HDMI 1.4
Head set (mic in/ audio out) Φ3.5 mm mini plug CTIA
Live image streaming Attach the recommended USB wireless LAN adaptor to the type A USB connector

SOFTWARE FEATURES

Image features 5X digital zoom, 16-step brightness control
Gain control 4-step adjustable gain control (Manual, Auto, Wider1, Wider2)
Dynamic noise rediction Available
Display text options 30-character title display
Note text options 30-character title display、mark, free drawing
Image display functions Live image can be inverted to right and left, inverted to up and down, and rotated 180 degrees

RECORDING MANAGEMENT FUNCTIONS

Recording media SDHC  (*with supplied SDHC)
micro SDHC (using the recommended parts) *Set the constant video function to ON
Internal memory Available (only the still images are recorded)
Overlay Selectable 30-character title with date, time, optical tip, OLYMPUS logo, title, and system setting
Thumbnail image display Recorded images can be displayed as thumbnails
Still image recording Resolution H768 x V576(Pixel)
Recording format Compressed JPEG format
Video recording Resolution H768 x V576(Pixel)
Recording format MPEG 4 AVC/H.264
comforms to baseline profile.  Windows Media Player 12 compatible
Frame rate 60 fps /30 fps

MEASUREMENT FUNCTIONS

Scalar measurement Using reference length to measure object length

STEREO MEASUREMENT FUNCTIONS — UPGRADE FOR OPTIONAL FUNCTIONS

Distance Distance between two points
Point-to-line Perpendicular distance between a point and a user-defined line
Depth Orthogonal depth/height distance between a point and a user-defined plane
Area/Lines Multiple point circumference and area measurement

OPERATING ENVIRONMENT

Operating temperature Insertion tube In air: -25 °C to 100 °C (-13 °F to 212 °F); in water: 10 °C to 30 °C (50 °F to 86 °F)
Other parts In air: -10 °C to 40 °C (14 °F to 104 °F) (with battery)
In air: 0 °C to 40 °C (32 °F to 104 °F) (with AC power adaptor and battery charge)
Relative humidity All parts 15 to 90%
Liquid resistance All parts Operable when exposed to machine oil, light oil, or 5% saline solution
Dust proofing and water proofing Insertion tube Operable under water with viewing tip adaptor attached
Not operable underwater with stereo measurement tip adaptors
IV94 series — Up to an equivalent to 3.5 m (11.5 ft) in depth
IV96 series — Up to an equivalent to 10 m (32.9 ft) in depth.
Other parts IP65; not operable under water (batter and other covers must be closed)

MIL-STD COMPLIANCE

The operating environment performance is confirmed by the following MIL-STD-810G and MIL-STD-461G.
No warranty is given as to damage-free under any conditions. Please ask Olympus sales representative for details.

Type Method
Vibration MIL-STD-810G、METHOD 514.7 Procedure I (General vibration test)
Shock MIL-STD-810G、METHOD 516.7 Procedure IV (Transit drop test)
