MÁY KÉO NÉN KIỂM TRA ĐỘ BỀN SHIMADZU AGS-X
- Giá : Liên hệ
- MASP : AGS-X SERIES
- Nhà sản xuất : SHIMADZU JAPAN
- Dòng máy kéo nén kiểm tra độ bền vật liệu, sản phẩm nổi tiếng của Shimadzu Japan, dễ dàng vận hành, phù hợp trong lĩnh vực đo thiết bị nhựa, kim loại...
Chi tiết Sản phẩm
Hardware Specifications

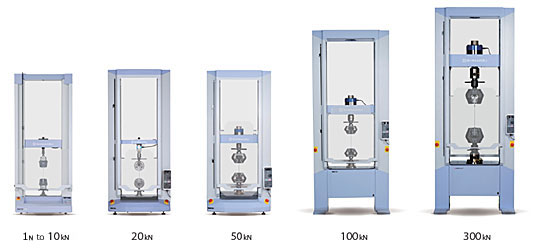

Test Frame Type and Name | Table-top Test Frame | Floor Test Frame | ||||
---|---|---|---|---|---|---|
AGS-X 10 kN |
AGS-X 20 kN |
AGS-X 50 kN |
AGS-X 100 kN |
AGS-X 300 kN |
||
Test Frame Load Capacity | Max. 10 kN (2,200 lbs) | Max. 20 kN (4,400 lbs) | Max. 50 kN (11,200 lbs) | Max. 100 kN (22,400 lbs) | Max. 300 kN (67,400 lbs) |
|
Crosshead Speed Range | 0.001 to 1000 mm/min (0.0004 to 39 in/min) |
0.001 to 1600 mm/min (0.0004 to 62 in/min) |
0.001 to 800 mm/min (0.0004 to 31 in/min) |
0.001 to 500 mm/min (0.0004 to 19 in/min) |
||
Maximum Return Speed | 1500 mm/min (59 in/min) |
2200 mm/min (86 in/min) |
1100 mm/min (43 in/min) |
550 mm/min (21 in/min) |
||
Crosshead Speed Accuracy | Within ±0.1% of test speed | |||||
Crosshead Positional Accuracy | ±0.1% of indicated value or ±0.01mm, whichever is larger | |||||
Test Force Measurement Accuracy | High-Accuracy Load Cells | Within ± 0.5% of indicated test force (for 1/1 to 1/500 of load cell rated capacity) | Within ± 0.5% of indicated test force (for 1/1 to 1/250 of load cell rated capacity) | |||
Conforms to ISO 7500-1 Class 0.5, ASTM E4, JIS B7721 Class 0.5, EN 10002-2 Grade 0.5, BS1610 Class 0.5, and DIN51221 Class 0.5 | ||||||
Standard-Accuracy Load Cells | Within ± 1% of indicated test force (for 1/1 to 1/500 of load cell rated capacity) Conforms to ISO 7500-1 Class 1, ASTM E4, JIS B7721 Class 1, EN 10002-2 Grade 1, BS1610 Class 1, and DIN51221 Class 1 |
|||||
Effective Width | 425 mm (16.5 in) | 600 mm (23.5 in) | ||||
Crosshead-Travel for Standard Height Models | Max. 1200 mm (47 in) | Max. 1250 mm (49 in) | Max. 1210 mm (48 in) | Max. 1255 mm (49 in) | Max. 1475 mm (58 in) | |
Crosshead-Travel for +250mm Extended Models | Max. 1450 mm (57 in) | Max. 1500 mm (59 in) | Max. 1460 mm (58 in) | Max. 1505 mm (59 in) | Max. 1725 mm (68 in) | |
Crosshead-Travel for +500mm Extended Models | Max. 1700 mm (67 in) | Max. 1750 mm (69 in) | Max. 1710 mm (68 in) | Max. 1755 mm (69 in) | Max. 1975 mm (78 in) | |
Data Capture Rate | 1000 Hz | |||||
Standard Input/Output Channels | –1 Dedicated load channel –1 Digital input/output channel*4 –1 Control input/output channel*4 |
|||||
Dimensions | W653 x D520 x H1603 mm (W26 x D21 x H63in) |
W718 x D641 x H1633 mm (W28 x D25 x H64 in) |
W945 x D725 x H2164 mm (W37 x D29 x H85 in) |
W945 x D725 x H2414 mm (W37 x D29 x H95 in |
||
Weight | Approx. 85 kg (187 lbs) | Approx. 235 kg (518 lbs) | Approx. 260 kg (573 lbs) | Approx. 525 kg (1157 lbs) | Approx. 675 kg (1488 lbs) | |
Operating Environment | Temperature: 5° C to 50° C (41° F to 122° F); Humidity: 20% to 80% (no condensation) Floor Vibrations: frequency 10 Hz max., amplitude 5 µm (0.0002 in) max. |
|||||
Power Requirements | Single Phase 100/120/220/240 V 50/60 Hz |
Single Phase 200-230 V 50/60 Hz |
Single Phase 200-230 V 50/60 Hz |
Three Phase 200-230 V 50/60 Hz *3 |
Three Phase 200-230 V 50/60 Hz *3 |
Note 1: When the load cell capacity is smaller than the tester load capacity, the former is the maximum test force.
Note 2: Shimadzu recommends validation at an installation site that meets the requirements specified in these standards.
Note 3: Three Phase 380-440 V 50/60 Hz are available upon request for AGS-X 100kN and AGS-X 300kN Models.
Note 4: Optional expansion boxes can be used to increase the number of channels, see brochure for details.
Note 2: Shimadzu recommends validation at an installation site that meets the requirements specified in these standards.
Note 3: Three Phase 380-440 V 50/60 Hz are available upon request for AGS-X 100kN and AGS-X 300kN Models.
Note 4: Optional expansion boxes can be used to increase the number of channels, see brochure for details.
PC Requirements for Trapezium X
Operating System | Windows 7 | |
Type | 32 or 64 bit | |
CPU | Intel Pentium 4, 2GHz or higher | |
Memory | 1 GB min. | |
HDD | 80 GB or greater | |
CD-ROM Drive | Required for software installation | |
USB Port | 1 port for main frame, other accessories may require additonal ports | |
Display | Size | 19 inch minimum |
Resolution | 1024 x 768 pixels minimum |
Installation Space
DEMO:
