Máy đo trở kháng, an toàn nguồn điện

Máy đo trở kháng, an toàn nguồn điện
Giá : Liên hệ
MASP : TOS5300 Series
Nhà sản xuất : KIKUSUI JAPAN

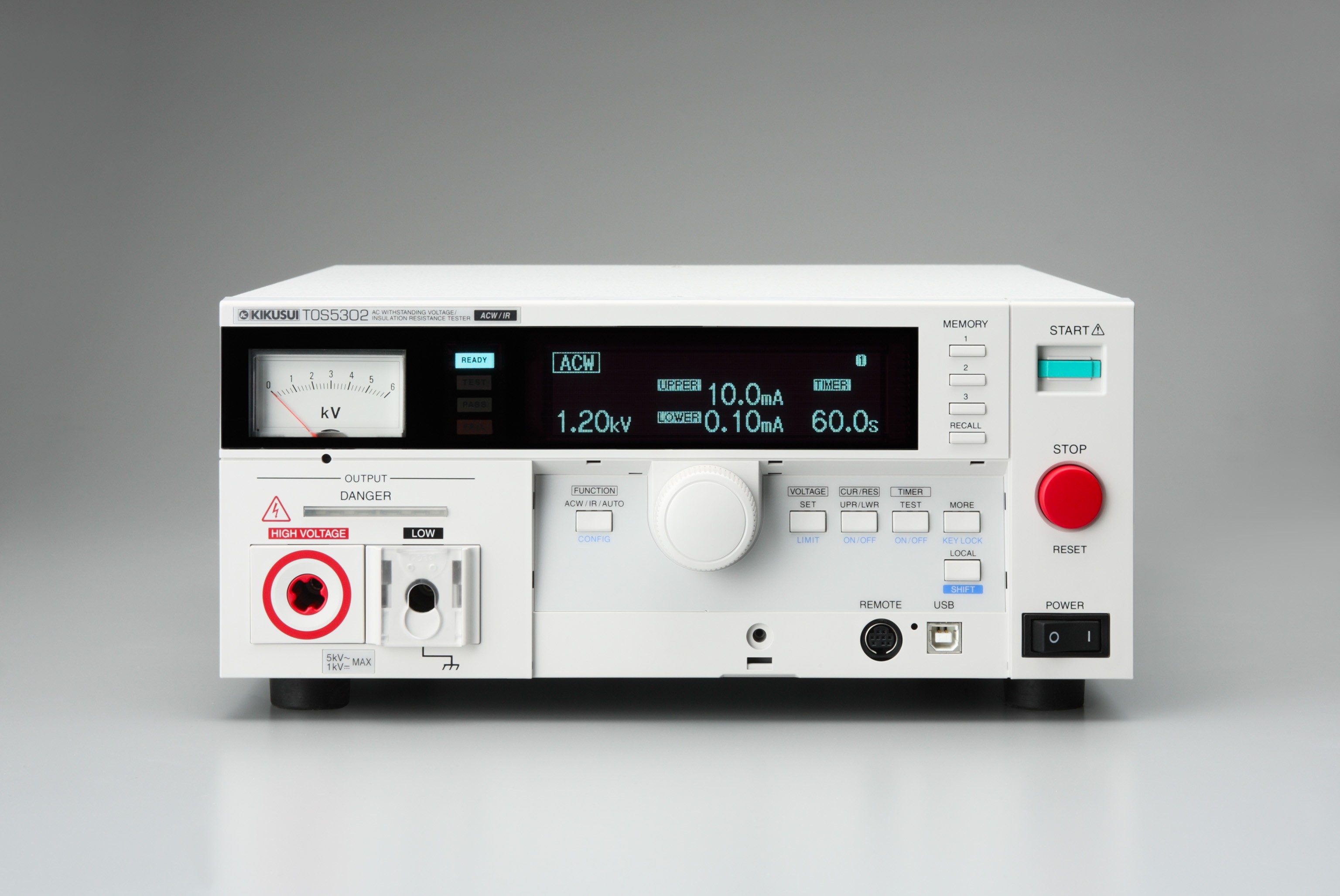

The "TOS5300 Series" is a series of test instruments used in Hipot (withstanding voltage) tests and insulation resistance tests, two of the four tests regarded as necessary for ensuring the safety of electrical products. With an output of 5 kV/100 mA (AC) and 6 kV/10 mA (DC), the series can be used in Hipot (withstanding voltage) & insulation resistance testing of electronic equipment and electronic parts, based on the requirements of IEC, EN, UL, VDE, JIS, and other international safety standards and the Electrical Appliance and Material Safety Law. Also, the test voltage stability is improved with the adoption of a newly developed switching amplifier. Since the output voltage can be kept constant even when the AC line voltage or frequency changes, consistent testing can be performed, even when the power supply environment is in an unstable region. The TOS5300 is also equipped with a number of features that are capable of meeting a variety of test needs. It is a new low-cost standard model that provides thorough operability, reliability and safety.

Model	Specification
TOS5300	.The PWM amp system provides highly-stable output, 5kV/100mA (500VA) AC Hipot (withstanding voltage) test, High-precision measurement ±1.5% of reading (with voltmeter 500V or higher, Ammeter 1mA or higher), Rise time/Fall time control, Key lock function and Protection cover for key operation, Equipped with USB interface
TOS5301	.The PWM amp system provides highly-stable output, 5kV/100mA (500VA) AC Hipot (withstanding voltage) test, 6kV/maximum output 50W DC Hipot (withstanding voltage) tester (TOS5301), High-precision measurement ±1.5% of reading (with voltmeter 500V or higher, Ammeter 1mA or higher), Rise time/Fall time control, Key lock function and Protection cover for key operation, Equipped with USB interface
TOS5302	.The PWM amp system provides highly-stable output, 5kV/100mA (500VA) AC Hipot (withstanding voltage) test, 25V-1000V (7 steps), 500V or greater, up to 5.00GΩ Insulation Resistance test, High-precision measurement ±1.5% of reading (with voltmeter 500V or higher, Ammeter 1mA or higher), Rise time/Fall time control, Key lock function and Protection cover for key operation, Equipped with USB interface
