MÁY ĐO BIÊN DẠNG CNC-NIKON NEXIV VMR SERIES

MÁY ĐO BIÊN DẠNG CNC-NIKON NEXIV VMR SERIES
Giá : Liên hệ
MASP : VMR-3020
Nhà sản xuất : NIKON
Mô hình chuẩn của loạt NEXIV, Nó xử lý một loạt các nhiệm vụ đo lường bao gồm cả những người cho các bộ phận cơ khí, đúc các bộ phận, phụ tùng đóng dấu và phôi khác nhau.

Standard Type

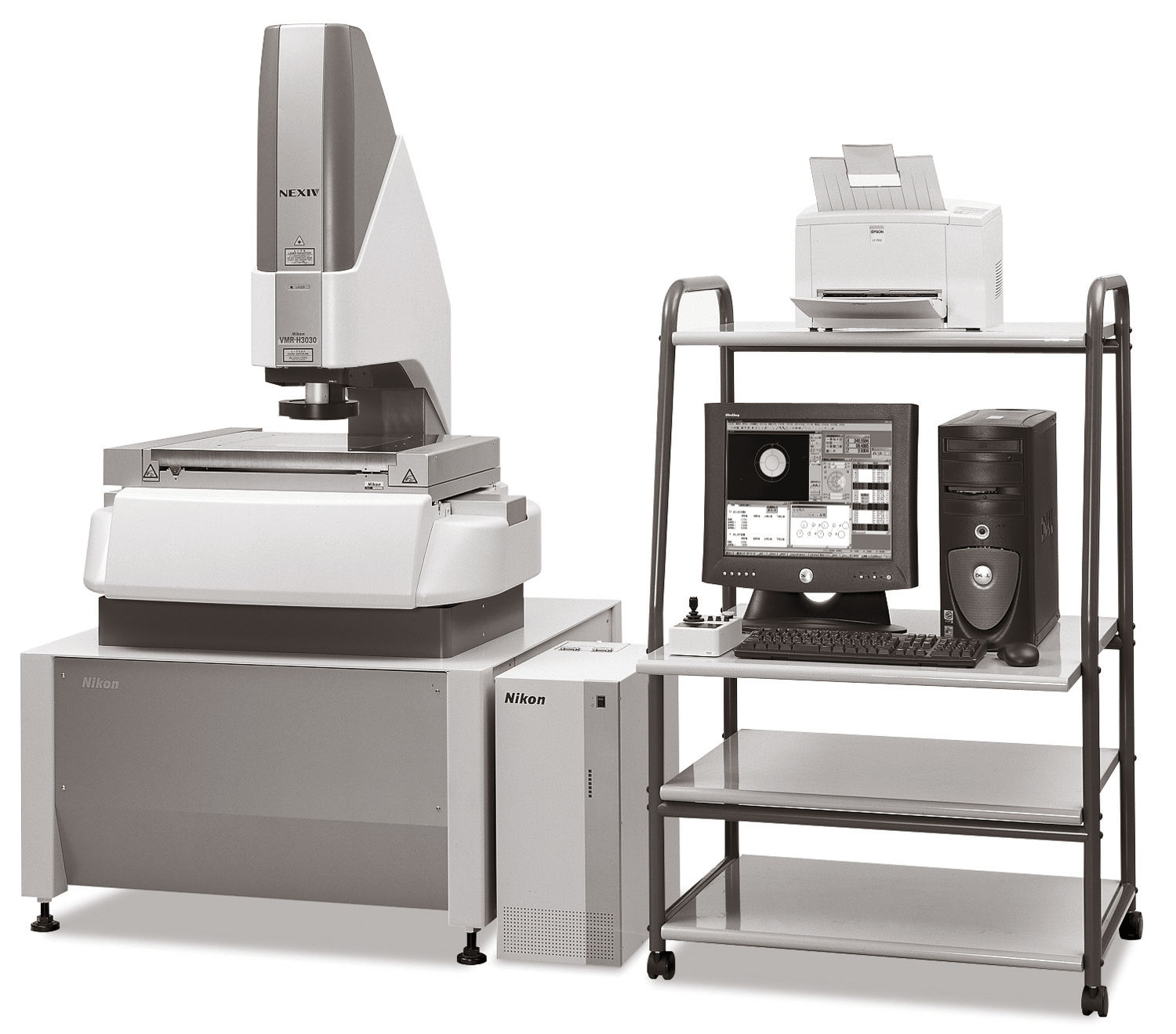

The standard model of the NEXIV series, It handles a variety of measurement tasks including those for mechanical parts, molded parts, stamped parts and various other workpieces.
Applications	Semiconductor packages Substrates Stamped parts Connectors Injection molded parts
Variety of illumination choices facilitate accurate detection of edges in molded parts Long working distance (50mm) permits measurements of parts with big height gaps 15X zoom provides universal applications while facilitating easy search at low magnifications and accurate measurements at high magnifications User-friendly software Laser AF facilitates evaluations of cross-sectional shapes and 3D profiling as well as the flatness of workpiece surfaces

Specifications

Stroke (XxYxZ)		300 x 200x 150 mm (11.8 x 7.9 x 5.9 in.)
Minimum readout		0.1µm
Maximum workpiece weight		20kg
Measuring accuracy	U1X, U1Y	.5 + 4L/1000µm (with a workpiece max. 5kg)
	U2XY	2.5 + 4L/1000µm (with a workpiece max. 5kg)
Z-axis (L: Length in mm < W.D.)		1.5 + L/150µm
Camera		B&W 1/3-in. CCD (progressive scan), color 1/3-in. CCD
Working distance		50mm
Magnification vs field of view	Optical Head for Type 1	0.5 - 7.5X / 9.33 x 7 - 0.622 x 0.467 mm
	Optical Head for Type 2	1 - 15X / 4.67 x 3.5 - 0.311 x 0.233 mm
	Optical Head for Type 3	2 - 30X / 2.33 x 1.75 - 0.155 x 0.117 mm
Auto focus		TTL Laser AF and Vision AF
Illumination		Diascopic, episcopic, 8-segment LED ring illumination (inner ring / outer ring)
Power source		AC100V±10%A50/60Hz
Power consumption		Max. 11A
Dimensions & weight	Main unit only	625 x 728 x 1195 mm, approx. 200kg (24.6 x 28.7 x 47.0 in., 441.0 lb.)
	Main unit & table	690 x 730 x 1725 mm, approx. 240kg (27.2 x 28.7 x 67.9 in., 529.1 lb.)
	Controller	250 (D) x 550 (D) x 500 (H) mm, approx. 31kg (9.8 x 21.7 x 19.7 in., 68.3 lb.)
Footprint		2100 (W) x 1100 (D) mm (82.7 x 43.3 in.)
Host Computer
Main unit		IBM PC/AT (Windows^®2000)
Monitor		17-in. TFT color

Standard Type	Ultrahigh-Precision Type	Large Stroke Type	Ultra-large Stroke Type
NEXIV VMR-3020 NEXIV VMR-3020 Z120X	NEXIV VMR-H3030 NEXIV VMR-H3030 Z120X	NEXIV VMR-6555 NEXIV VMR-6555 Z120X	NEXIV VMR-10080 NEXIV VMR-10080 Z120X
