MÁY ĐO BỀ DÀY LỚP PHỦ - KETT LZ-990

Sản Phẩm

MÁY ĐO BỀ DÀY LỚP PHỦ - KETT LZ-990
Giá : Liên hệ
MASP : KETT LZ-990
Nhà sản xuất : KETT JAPAN

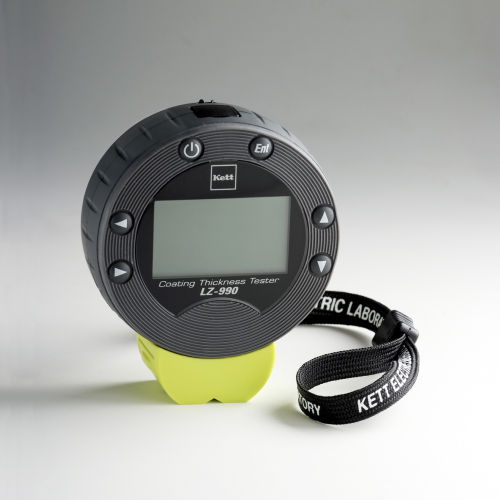

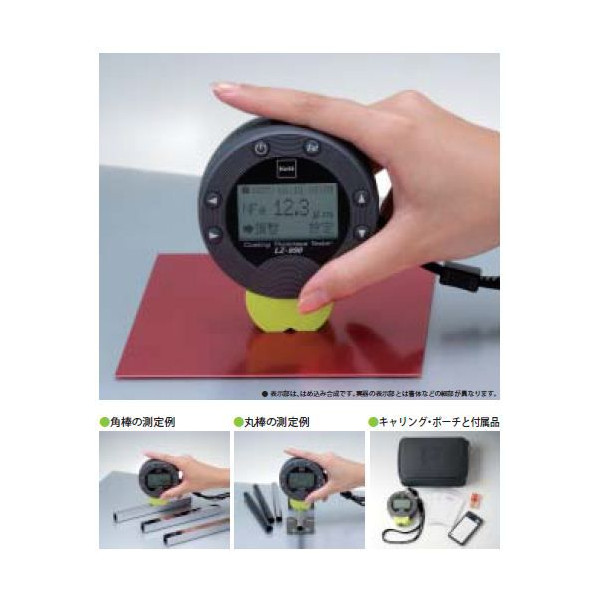

This dual-type coating thickness tester LZ-990 "ESCAL" is a simple, compact coating thickness tester. It is possible to measure the thickness of films coated onto ferrous and nonferrous substrates. Further, it can automatically determine the type of substrate material and switch to the required measurement mode

Chi tiết Sản phẩm

●Specifications	LZ-990 "ESCAL"
Measurement method	Uses both electromagnetic induction and eddy-current methods (with automatic selection function)
Applications	Non-magnetic coating on ferrous metal substrate and insulating coating on non-ferrous metal substrate
Measurement range	0-2000µm or 0-80mils
Measurement precision	<50 µm ± 1 µm, 50 µm to <1000 µm ± 2%, ≥ 1000 µm to <2000 µm ± 3%
Resolution	<100 µm, 0.1 µm; ≥ 100 mm, 1 µm
Conformity Standard	Electromagnetic induction:JIS K5600-1-7、JIS H8501、JIS H0401 / ISO 2808、ISO 2064、ISO 1460、ISO 2178、ISO 19840 / BS 3900-C5 / ASTM B 499、ASTM D 7091-5 Eddy-current:JIS K5600-1-7、JIS H8680-2、JIS H8501 / ISO 2808、ISO 2360、ISO 2064、ISO 19840 / BS 3900-C5 / ASTM D 7091-5
Display format	Digital (backlit LCD, smallest displayed unit 0.1 µm)
Data memory	Approx. 1000 points
Application memory	8 Types of electromagnetic or eddy current methods, total 16 Calibration curves
Power source	2x 1.5V Batteries ("AAA" size Alkaline)
Power consumption	40 mW (when backlight OFF)
Operating environmental	0-40°C
Functions	Application memory (calibration curves), Measured data memory, Data delete, Data output, Lot classification, Auto power ON/OFF, Clock, Upper and lower limits, Statistical calculations, Backlight, Unit setting, etc, total 15 functions
External output	Can be output to PC (USB) or printer (RS-232C)
Dimensions & weight	82(W) x 99.5(D) x 32(H) mm, approx. Net 160g.
Accessories	Zero plate holder (Ferrous metal substrate, Aluminum substrate), Calibration foils (50, 100, 1000 _m), Carrying pouch, 2x 1.5V Batteries ("AAA" size Alkaline), Instructions, Wriststrap
Options	Calibration foils (thicknesses other than those available as standard accessories), Measuring stand LW- 990, Printer VZ-330, Printer cable,USB PC cable, Transparent protective cover, Data Logger Software (LDL-01)
