MÁY ĐO BỀ DÀY LỚP PHỦ- ELCOMETER 456

Sản Phẩm

MÁY ĐO BỀ DÀY LỚP PHỦ- ELCOMETER 456
Giá : Liên hệ
MASP : ELCOMETER 456
Nhà sản xuất : ELCOMETER
ELCOMETER 456 LÀ DÒNG MÁY ĐO BỀ DÀY LỚP PHỦ TRÊN NỀN TỪ TÍNH VÀ PHI TỪ TÍNH . KẾT QUẢ ĐO CHÍNH XÁC, CHUYỂN ĐỔI GIỮA 2 KÊNH ĐO NHANH CHÓNG.

Chi tiết Sản phẩm

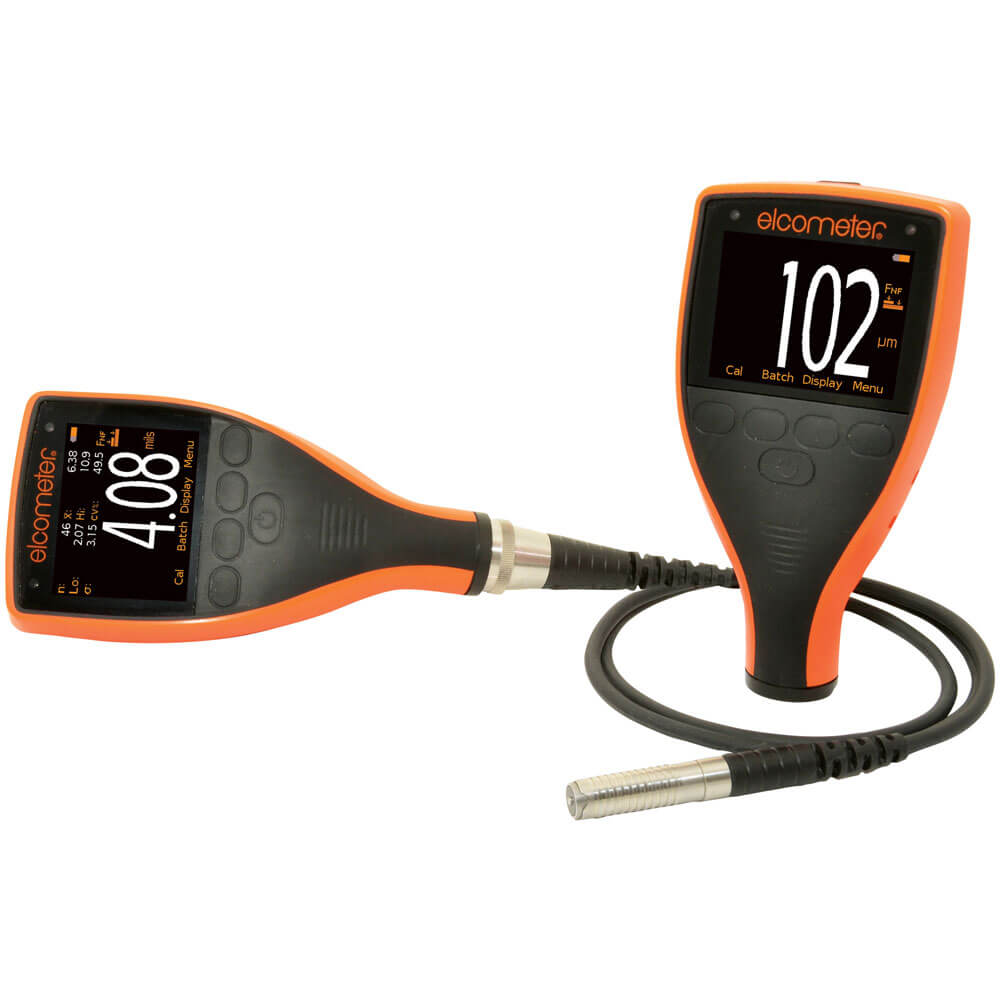

Elcometer 456 Coating Thickness Gauge

The Elcometer 456 Coating Thickness Gauge sets new standards; providing reliable and accurate coating thickness measurements; helping you to become more efficient.

The Elcometer 456 dry film thickness gauge is available in three different models. Each coating thickness gauge provides the user with increasing functionality - from the entry level Elcometer 456 Model B, to the top of the range Elcometer 456 Model T.

Integral coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot™ internal probe provides greater stability during coating thickness measurement - allowing for consistent, repeatable and accurate dry film thickness results.

Separate coating thickness gauge models, with their wide range of probes, provide even greater dry film thickness measurement flexibility.

Compatible with ElcoMaster^® software and ElcoMaster^® Mobile App, individual coating thickness measurements can be transferred via USB or Bluetooth^® to PC or a mobile device for analysis and instant report generation.

Halve inspection times using the Elcometer 456 Coating Thickness Gauge with Ultra/ Scan Probe

Featuring a highly durable probe cap, the Elcometer 456 Coating Thickness Gauge Ultra/Scan Probe is a revolutionary design which allows users to take individual dry film thickness readings or rapidly scan large surface areas - without damaging the probe or the coating.

When used in conjunction with the Elcometer 456 Coating Thickness Gauge Scan or Auto Repeat Mode, the Ultra/Scan Probe enables users to significantly reduce dry film thickness inspection times without affecting accuracy.

With a reading rate of 140 readings per minute, the Elcometer 456 Coating Thickness Gauge with Ultra/Scan Probe allows you to inspect more coatings in less time.

Key features of the Elcometer 456 Coating Thickness Gauge include:

Easy

Large buttons ideal for gloved hands
Easy to use menus in multiple languages
High contrast colour LCD with auto rotate
High and low reading limit indicators
Factory calibrated for immediate use

Accurate

Thickness measurement capability to ±1%
Can be used in accordance with National & International Standards
Temperature stable measurements
Increased reading resolution for thin coatings
Measures accurately on smooth, rough, thin and curved surfaces

Reliable

Repeatable and reproducible
2 year gauge warranty
Supplied with fully traceable test certificates
Batch date and time stamp facility

Rugged

Sealed, heavy duty and impact resistant
Dust and waterproof equivalent to IP64
Scratch and solvent resistant display
Durable gauge and probe construction
Suitable for use in harsh environments

Efficient

Fast reading rate of 70+ per minute, 140+ per minute with Ultra/Scan Probe
Multiple calibration memories
Alpha numeric batch identification
User selectable calibration methods
Compatible with ElcoMaster^® and ElcoMaster^® Mobile App

Powerful

Wide range of interchangeable probes
USB and Bluetooth^® data output to iPhone* or Android™ devices
Stores up to 150,000 readings in 2,500 batches
Measures up to 31mm (1220mils) of coating on metal substrates

The importance of Coating Thickness Gauge Calibration

Formal quality systems, such as those described in ISO 9001, require coating thickness gauges to be properly controlled, logged and calibrated. Increasingly, users are specifying that the readings taken by thickness gauges are traceable to National Standards.

In order to test the accuracy of a particular gauge it is important to have traceable coating thickness standards.

Elcometer offer a comprehensive range of certified foilstogether with zero test plates to ensure the accuracy of the coating thickness gauge.

Get the best performance from the Elcometer 456 Coating Thickness Gauge and make the best use of the gauge’s ±1% accuracy by calibrating the coating thickness instrument to suit the application. This video will guide you through a range of calibration options for both the integral and the separate models
.
