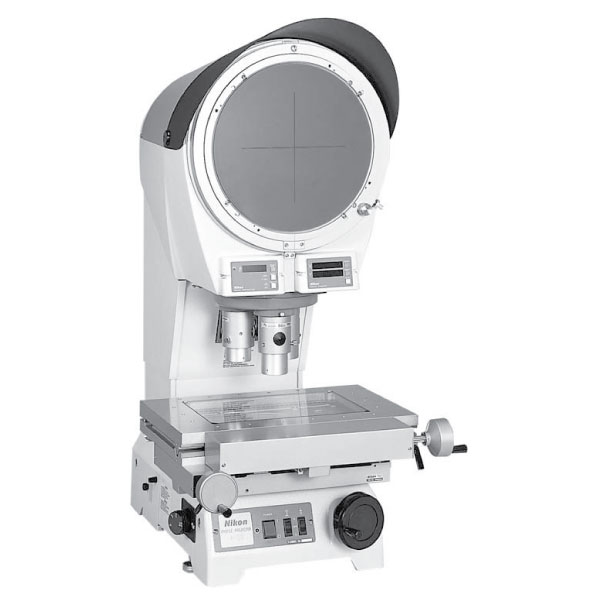

| Projection Screen: |
V-12BDC and V-12BD provided with digital protractor fine rotation knob, 360° rotation (reading to 1 minute arc) |
| XY Counter: |
V-12BDC - Built in (1 mm/0.5 mm selectable); V-12BD - Not Provided; V-12BSC - Built in (1 mm/0.5 mm selectable); V-12BS - Not Provided |
| Max. Height of Specimen: |
100mm (4.0 in) with 8x6, 6x4, 4x4, O3L and 2x2 |
| Power Source (2 types): |
110 VAC (50/60Hz); 220VAC (50/60 Hz) |
| Max. Load Capacity: |
15 kg (33.0 lb) with 8x6 and 6x4, 6 kg (13.2 lb) with 4x4, 5 kg (11.0 lb) with O3L, 5 kg (11.0 lb) with 2x2 |
| Dimensions: |
409 x 648 x 970-1070 mm (16.1 x 25.5 x 38.2-42.1 in) |
| Projection Lenses: |
5x, 10x, 20x, 25x, 50x, 100x, 200x and 500x. 3-lens turret; clamp screw type |
| Stage: |
8x6, 6x4, 4x4, O3L and 2x2 |
| Vertical SurfaceIllumination: |
All projection lenses feature internal half-reflecting mirrors which are prealigned to the built in vertical surface illuminator. 500x lens should be used with an EPI Condenser Lens. |
| Weight: |
Approx. 80 kg (176.4 lb) |
| MagnificationAccuracy: |
Contour illumination ±0.1%, vertical/oblique surface illumination ±0.15% |
| Image: |
Erect and unreversed |
| Illumination: |
High/low light intensity control; 24V/150W halogen lamp |
| Oblique Illumination : |
Oblique surface illumination can be obtained by tilting EPI illumination unit |
| Contour Illumination: |
Telecentric type. 200x and 500x lenses should be used with a DIA Condenser Lens. |
