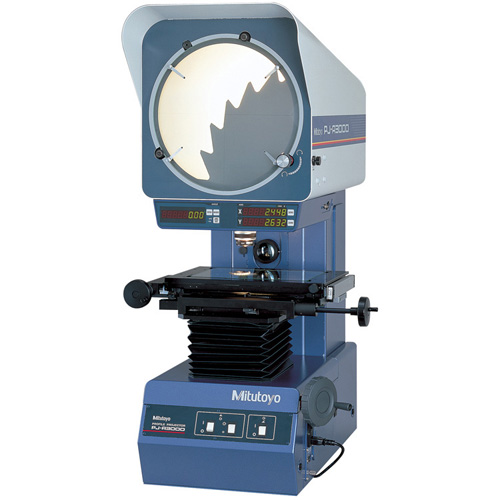

PJ-A3000 Profile Projector (Mitutoyo)

302 Series

• The PJ-A3000 series are vertical profile projectors that are medium sized, 11.8"/300mm) models that feature high versatility and easy operation
• Easy to read digital XY counter is located near the projection screen to minimize eye movement
• Digital readout protractor screen facilitates angle measurement
• ​Projected image is inverted
• Protractor screen has a diameter of 12.4"/315mm, the screen is fine ground glass, resolution is 1' or .01° (switchable), range +-360°, functions absolute/incremental mode switching, Zero setStandard 10X lens
• Magnification accuracy +-0.1% or less contour illumination, +-0.15% or less surface illumination
• Contour illumination has a Halogen bulb (24V, 150W), has a telecentric optical system, 2 stage brightness switch, and a heat absorbing filter
• Surface illumination has a Halogen bulb (24V, 150W), has a vertical illumination with a half reflection mirror

PJ-A3010F-200

302-701A

• 8" x 4" XY Range (200 x 100mm)
• .0001"/.001mm resolution
• Built in linear scales
• 14.96" x 9.84" Table size (380 x 250mm)
• 10.47" x 6.69" Effective table area (266 x 170mm)
• 3.64" Max workpiece height (92.5mm)
• ​+- Direction switching, SPC output zero-setting
• 120V AC, 50/60Hz power supply​
• 308lbs (140kg)
• Standard: 10X projection lens set, masking shield, power

PJ-A3005F-150

302-702A

• 6" x 2" XY Range (150 x 50mm)
• .0001"/.001mm resolution
• Built in linear scales
• 11.02" x 5.98" Table size (280 x 152mm)
• 7.24" x 3.23" Effective table area (184 x 82mm)
• 4.07" Max workpiece height (103.5mm)
• ​+- Direction switching, SPC output zero-setting
• 120V AC, 50/60Hz power supply
• 255lbs (116kg)
• Standard: 10X projection lens set, masking shield, power cord, halogen bulb, tube fuse, grounding wire, allen key, cap

PJ-A3010F-100

302-703A

• 4" x 4" XY Range (100 x 100mm)
• .0001"/.001mm resolution
• Built in linear scales
• 9.84" x 9.84" Table size (250 x 250mm)
• 5.6" x 5.6" Effective table area (142 x 142mm)
• 3.58" Max workpiece height (91mm)
• ​+- Direction switching, SPC output zero-setting
• 120V AC, 50/60Hz power supply
• 246lbs (112kg)
• Standard: 10X projection lens set, masking shield, power cord, halogen bulb, tube fuse, grounding wire, allen key, cap

PJ-A3005D-50

302-704A

• 2" x 2" XY Range (50 x 50mm)
• .0001"/.001mm resolution
• Digimatic mic heads
• 5.98" x 5.98" Table size (152 x 152mm)
• 3.23" x 3.23" Effective table area (82 x 82mm)
• 4.86" Max workpiece height (123.5mm)
• ​+- Direction switching, SPC output zero-setting
• 120V AC, 50/60Hz power supply
• 235lbs (107kg)
• Standard: 10X projection lens set, masking shield, power cord, halogen bulb, tube fuse, grounding wire, allen key, cap
