LÒ NUNG/ Muffle Furnaces YAMATO FO SERIES

Sản Phẩm

LÒ NUNG/ Muffle Furnaces YAMATO FO SERIES
Giá : Liên hệ
MASP : FO100/200/300/310/410/510/610/710/810
Nhà sản xuất : YAMATO
Lò nung dòng FO thuộc kiểu tiêu chuẩn với bộ vi xử lý nhiệt và có khả năng đặc trưng quá trình cấp nhiệt. Có đặc tính đoạn nhiệt cao (không mất nhiệt với môi trường xung quanh) nên nhiệt độ tăng nhanh trong một thời gian ngắn. Bộ điều khiển PID vi xử lý. Thiết kế gọn, chắc chắn, tiết kiệm không gian. Có chức năng tự chẩn đoán. Dung tích cao, từ 1,5 đến 30L Dải đo: 100 – 11500C.

Chi tiết Sản phẩm

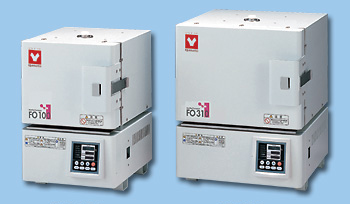

Muffle Furnaces

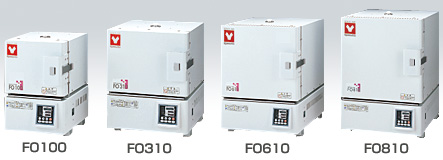

FO100/200/300/310/410/510/610/710/810

Temperature Range

100deg.C to 1,150deg.C

Temperature Control Accuracy

±2deg.C

Internal Capacity

1.5 to 30 L

This FO series represent standard type of muffle furnaces which use a microprocessor controlled thermoregulator and which are capable of heat processing characterized by excellent repeat ability.

Due to the high adiabatic characteristic, temperature rises in a very short time.
Space-saving and compact type. But inner capacity is large.
Equipped with self-diagnosis function.

Specifications

Model	FO100	FO200	FO300	FO310	FO410
Performance
Operating temperature range	100 to 1,150deg.C
Temp. control accuracy	±2deg.C(at 1,150deg.C)
Max. temp. reaching time	Approx.60min.	Approx.60min.	Approx.70min.	Approx.70min.	Approx.70min.
Components
Exterior material	Cold rolled steel plate with baked-on melamine resin finish
Furnace material	Ceramic fiber
Sensor	R-thermocouple (Double sensor)
Heater	Iron-chrome wire heater
Heater	1 kW	1.5 kW	2 kW	2 kW	2.2 kW
Cooling Fan Type	Auxial type fan
Controller
Temp. controller	PID control by microprocessor
Temp. setting method	Digital setting with UP/DOWN key
Temp display method	Digital display
Over heating prevention	On-off control by microprocessor
Over heating prevention setting method	Digital setting
Operation function	Program operation (6 patterns 30 steps or 2 pattern 15 steps or 3 patterns 10 steps)
Additional function	Calibration offset function, power failure compensation function
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. Digital setting, Auto-start, Quick auto-stop
Safe Device
	Self diagnosis functions (Heater, Sensor, SSR, Overheat prevention),　 Electric leakage breaker, Over heating prevention device.
Standard
Internal dimensions (mm) External dimensions (W×D×Hmm) Internal capacity	100×150×100 346×405×517 1.5L	100×250×150 346×505×567 3.75L	200×250×150 446×505×567 7.5L	200×250×150 446×505×567 7.5L	200×300×150 446×555×567 9.0L
Power source 50/60Hz (single phase)	AC100V 10A(15A)	AC100V 16A(20A)	AC100V 21A(30A)	Single phase AC200V 11A(20A)	Single phase AC200V 12A(20A)
Weight	Approx.24kg	Approx.30kg	Approx.37kg	Approx.37kg	Approx.38kg
Accessories
	Exhaust port cap 1 pc.

The projection is not included for Internal dimensions and External dimensions.

Model	FO510	FO610	FO710	FO810
Performance
Operating temperature range	100 to 1,150deg.C
Temp. control accuracy	±2deg.C(at 1,150deg.C)
Max. temp. reaching time	Approx.80min.	Approx.80min.	Approx.80min.	Approx.80min.
Components
Exterior material	Cold rolled steel plate with baked-on melamine resin finish
Furnace material	Ceramic fiber
Sensor	R-thermocouple (Double sensor)
Heater	Iron-chrome wire heater
Heater	2.5 kW	3 kW	3.5 kW	4 kW
Cooling Fan Type	Auxial type fan
Controller
Temp. controller	PID control by microprocessor
Temp. setting method	Digital setting with UP/DOWN key
Temp display method	Digital display
Over heating prevention	On-off control by microprocessor
Over heating prevention setting method	Digital setting
Operation function	Program operation (2 patterns 8 steps or 1 pattern 16 steps)
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. Digital setting, Auto-start, Quick auto-stop
Safe Device
	Self diagnosis functions (Heater, Sensor, SSR, Overheat prevention),　 Electric leakage breaker, Over heating prevention device.
Standard
Internal dimensions (mm) External dimensions (W×D×Hmm) Internal capacity	300×250×150 507×574×627 11.3L	250×350×200 507×604×677 17.5L	270×350×250 507×605×727 23.6L	300×400×250 507×655×727 30.0L
Power source 50/60Hz (single phase)	Single phase AC200V 13.5A(20A)	Single phase AC200V, 16A(20A)	Single phase AC200V 18.5A(30A)	Single phase AC200V 21A(30A)
Weight	Approx.44kg	Approx.52kg	Approx.58kg	Approx.62kg
Accessories
	Exhaust port cap 1 pc.

The projection is not included for Internal dimensions and External dimensions.

Control Panel	Interior

Temp. Output Terminal	Exhaust Unit
(Optional Accessory)	(Optional Accessory)

Sample tray

Dimensions (Unit:mm)

Optional Items

Description	Model No.	Product Code
Exhaust unit, 100V, for FO100, FO200, 300	FO Series	214096
Exhaust unit 200V,for FO310, FO410, F510, FO610, FO710, FO810	FO Series	214097
Time-up output terminal, for all of FO series	FO Series	281301
Temperature Output Terminal 4-20mA, for all of FO series	FO Series	281302
N2 gas inlet system with flow meter, for all of FO series	FO Series	281303
Sample tray, for all of FO series	FO Series	281310
