KÍNH LÚP-LUPE
- Giá : Liên hệ
- MASP : PEAK 1983
- Nhà sản xuất : PEAK- TOKAI SANGYO
- KÍNH LUPE VỚI ĐỘ PHÓNG ĐẠI 10X,30X,50X..
Chi tiết Sản phẩm

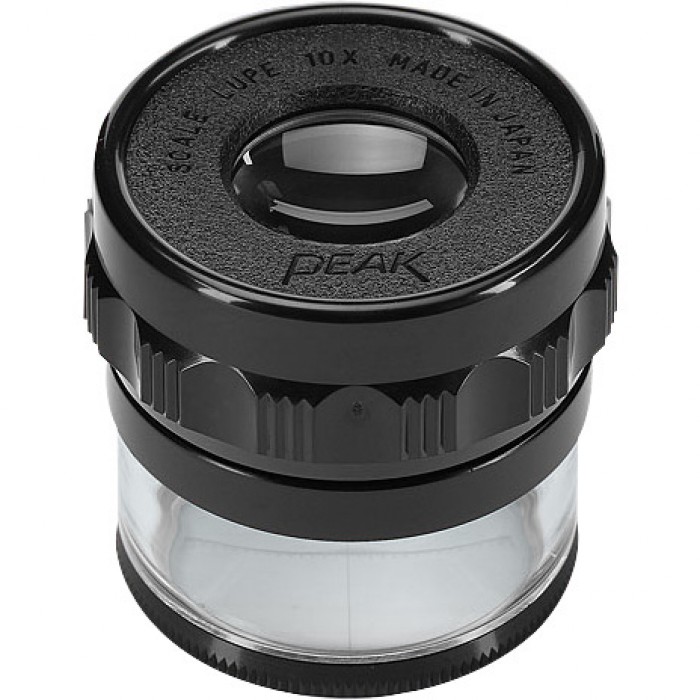

Peak Scale Loupe 10X has precision-constructed achromatic lenses (coated 4 elements, 2 groups), a photo-printed scale and focusing ring.
Magnification: 10X
Field of View: 32 mm (1.24 inch)
Scale Length: 30 mm (1.17 inch
Minimum Scale Division: 0.1 mm
Eye-piece: 20 mm
Size: 46 x 44 mm
Net Weight: 74 g
Pitch 1mm, Diameter 38mm for base threads.
The contradiction between high resolving power and wide visual field has been completely eliminated from this product so it can provide efficient inspection.
It comes with a convenient carrying case.
