Kính Lúp PEAK 2037-30X
- Giá : Liên hệ
- MASP : PEAK 2037-30X
- Nhà sản xuất : PEAK- TOKAI SANGYO

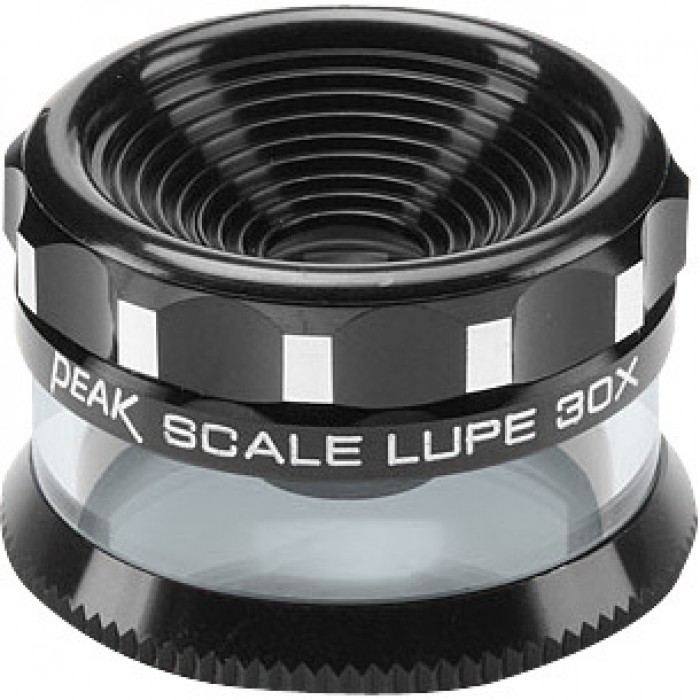

- Peak 2037 Measuring Magnifier (Erect Image) 30X
Chi tiết Sản phẩm
Peak Loupe 30x has been enjoying favorable reception from customers as a loupe of high magnification by the design of 4 elements, 2 groups, allowing erect image vision. This excellent magnifier is fitted with a glass scale to meet the demands from the many different sectors. Thereby making it possible to measure and compare the object to be inspected over the entire effective visual field of 7mm.
| Item Number | 2037 | 2037-L |
| Magnification | 30X | 30X |
| Effective Aperture | 7 mm | 7 mm |
| Size (mm) | 30øx19 | 43øx65x184 |
| Net Weight | 16 g | 48 g |
| Scale Length | 5 mm | 5 mm |
| Min. Scale Division | 0.05mm | 0.05mm |
-Std reticle scale, cross hair with metric scale on horizontal plane, zero left reading, scale divisions, scale divisions 0.05mm
Standard replacement reticle available.
 |
 |
| Black standard | White standard |
Provided with a penlight and the holder, making viewing easy.
