Đồng Hồ Đo Độ Dày Teclock
- Giá : Liên hệ
- MASP : SMD-540J
- Nhà sản xuất : TECLOCK
- TECLOCK standard Digital thickness gauge SMD-540J Standard Digital Thickness Gauges .0.01mm and 0.001mm graduation available. .0.001mm model which can measure up to 15mm thickness as maximum by lifting anvil.
Chi tiết Sản phẩm

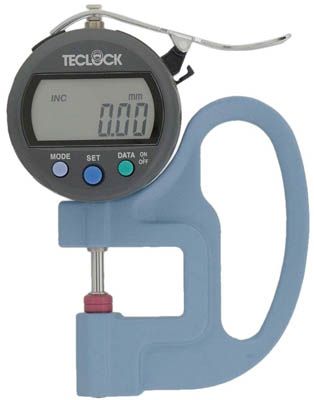

Teclock Digital Thickness Gauge
Code : SMD-540S,SMD-540S-LS,SMD-540S-LW,SMD-540S-3A,SMD-550S,SMD-550S-LS,SMD-550S-LW,SMD-550S-3A,SMD-540J,SMD-550J,SMD-565J,SMD-130
Brand : Teclock (Made in Japan)
| Model | Graduation | Measuring Range | Accuracy | Measuring Force | contact point |
| (mm) | (mm) | (µm) | (N) | (mm) | |
| SMD-540S | 0.01 | 12 | 20 or less | 2.0 or less | Ø 10 flat |
| SMD-540S-LS | 0.01 | 12 | 20 or less | 2.0 or less | Ø 10 flat |
| SMD-540S-LW | 0.01 | 12 | 20 or less | 2.0 or less | Ø3.2 Ball |
| SMD-540S-3A | 0.01 | 12 | 20 or less | 2.0 or less | Ø 5 flat |
| SMD-550S | 0.01 | 12 | 20 or less | 2.0 or less | Ø 10 flat |
| SMD-550S-LS | 0.01 | 12 | 20 or less | 2.0 or less | Ø3.2 Ball |
| SMD-550S-LW | 0.01 | 12 | 20 or less | 2.0 or less | Ø3.2 Ball |
| SMD-550S-3A | 0.01 | 12 | 20 or less | 2.0 or less | Ø 5 flat |
| SMD-540J | 0.01 | 12 | 20 | 1.0 or less | Ø 10 flat |
| SMD-550J | 0.01 | 12 | 20 | 1.0 or less | Ø 10 flat |
| SMD-565J | 0.001 | 15 (12) | 3 | 1.5 or less | Ø 10 flat |
| SMD-565L | 0.001 | 12 | 3 | 1.5 or less | Ø 10 flat |
| SMD-130 | 0.01 | 50 (25) | 30 | 2.0 or less | Ø 10 flat |
