đo lực kéo đẩy-push-pull tester imada

Sản Phẩm

đo lực kéo đẩy-push-pull tester imada
Giá : Liên hệ
MASP : AP-20N
Nhà sản xuất : ATTONIC
- Feature It enables you to do push-pull load mesurement easily in your hand. Reset button is put near the tip of the finger for more efficient work, so it is helpful for repeated work. Three kinds of attachments are standard attached. Please use it for various measurements. - Guaranteed term Two years - Example of usage for measurement ・Operation power measurement of switch ・Soldering strength measurement ・Opening and shutting power measurement of door ・Destruction measurement of plastic component ・Load setting in clamping lever mechanism etc.

Chi tiết Sản phẩm

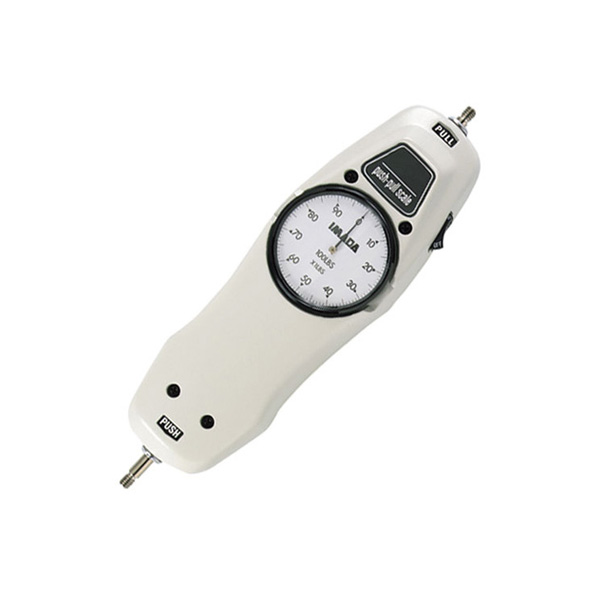

With reinforced plastic body, light, small measuring instrument that can endure long-time measurement.

	- Feature It enables you to do push-pull load mesurement easily in your hand. Reset button is put near the tip of the finger for more efficient work, so it is helpful for repeated work. Three kinds of attachments are standard attached. Please use it for various measurements. - Guaranteed term Two years - Example of usage for measurement ・Operation power measurement of switch ・Soldering strength measurement ・Opening and shutting power measurement of door ・Destruction measurement of plastic component ・Load setting in clamping lever mechanism etc. - Combination agreement load stand * K-501･505､M-501･505､KS-501､KM-501
	Catalog of AP series / Manual of AP series
	Main body externals dimensional drawin Accessory (attachment) externals dimensional drawing

Option

	Carrying case(model: CC-50) Material Box: Cardboard (surface ･･･ crossing finish) Interior: Styrene foam Please use it to keep and to carry.
	Special steering wheel(model: HP-50) Push-pull is installed. It is a steering wheel to do the measurement that uses both hands. Special steering wheel externals dimensional drawing

Model	Greates measured value	Minimum scale value	Accuracy	Stroke	Weight
AP-3N	3Ｎ	0.02Ｎ	±0.2% of full-scale	10mm	About 650g
AP-5N	5Ｎ	0.05Ｎ
AP-10N	10Ｎ	0.1Ｎ
AP-20N	20Ｎ	0.2Ｎ
AP-30N	30Ｎ	0.2Ｎ
AP-50N	50Ｎ	0.5Ｎ
AP-100N	100Ｎ	1Ｎ
AP-200N	200Ｎ	2Ｎ
AP-300N	300Ｎ	2Ｎ
AP-500N	500Ｎ	5Ｎ

It makes an effort as brought close to a color as original as possible, and there is an image when it is actual and it differs somewhat from the color.
Please acknowledge it.
