Digital Microscope / Camera Enhanced WD

• 5MP / Resolution 2592 x 1944
• MJPEG codec is required to run at 2592 x 1944 resolution
• High Quality Images - View Demo Images
• 10X~50X, 240X Variable Magnification  - View Demo Video
• Metal aluminum alloy encasement
• Interchangeable polarizer for glare reduction and sub dermal imaging
• Built-in measurement feature with calibration
• MicroTouch (trigger button)
• High Speed USB 2.0 Connection.
• 8 white built-in LEDs switched On/Off with included software

Product Applications

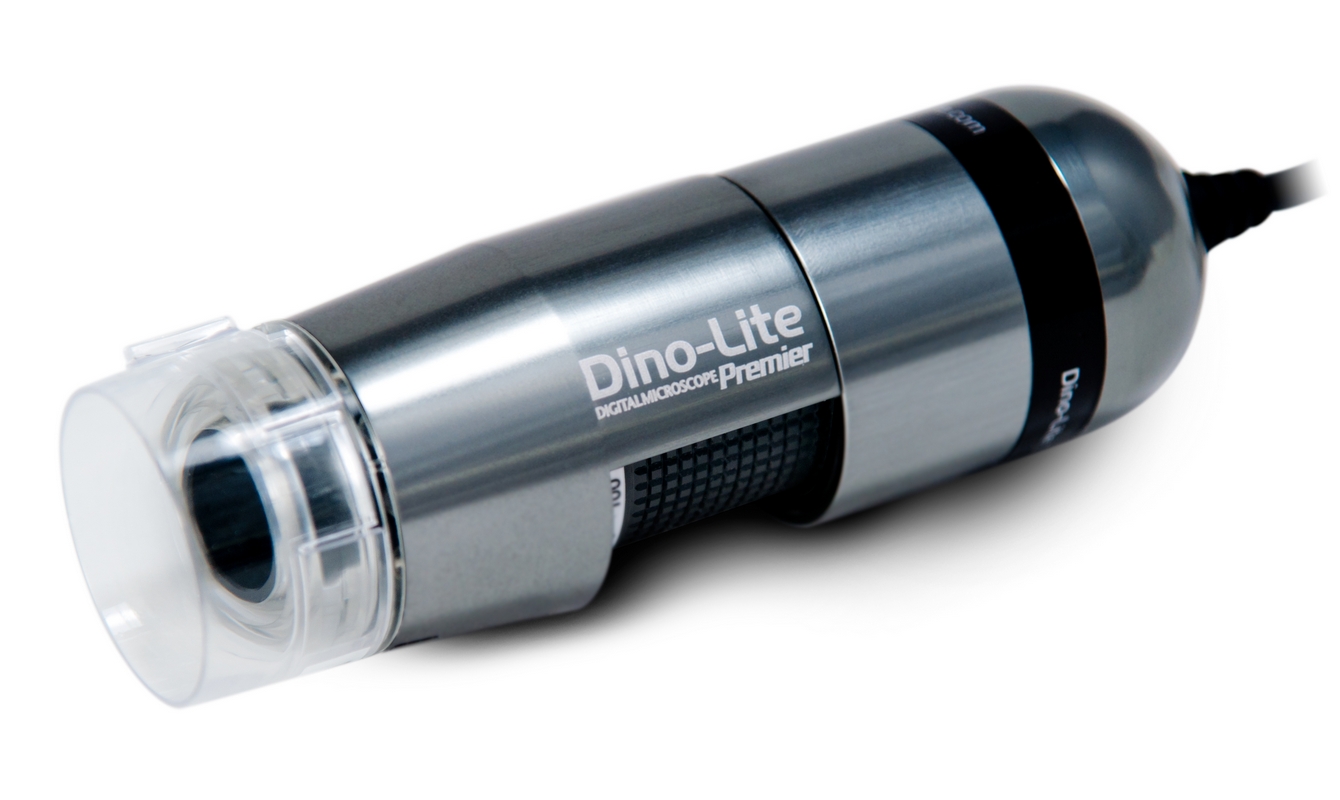

The Dino-Lite Premier AD7013MZT digital handheld microscope has a 5 megapixel sensor with detachable interchangeable front caps and adjustable polarizer capabilities. Allowing you to observe objects in high resolution, change the front cap to fit the situation, and see things you couldn't see before with direct lighting by using the adjustable polarizer. With up to 240x magnifications depending on working distance, polarization, 2592x1944 of resolution, and interchangeable front caps; you will not miss any detail under any magnification and under any situation.

You can see many things that you could not see before with an adjustable polarizer. On reflective metallic surfaces, harsh reflections from the surface can be significantly reduced or slightly reduced with adjustable polarization. Surfaces will appear different under polarization such as some semitransparent objects. For example under magnification and polarization, you can see the sub dermal layer of your skin showing you details you never saw before.

The AD7013MZT is appropriately incased with aluminum alloy providing robust protection only fit to hold 5 megapixels of viewing power. It includes our convenient MicroTouch II sensor on the microscope for picture taking. Also built in bright white LED's to instantly illuminate objects, so you do not need to worry about carrying a separate light source.

The Dino-Lite digital handheld microscope experience is not complete without the included DinoCapture 2.0 software that allows you to take pictures, record video, and also annotate on images. This model also includes the measurement and calibration capabilities available only for professional models such as this. The AD7013MZT with 5 megapixels sensor and adjustable polarizer allows you to observe in overwhelming detail under any magnification and see more than the naked eye with its adjustable polarizer.

Technical Specifications:

• 5MP / Resolution 2592 x 1944
• Hi-Speed USB 2.0
• Magnification: 10X~50X, 240X
• Sensor: Enhanced Color CMOS
• Frame rate: 30 fps
• Illumination: 8 Built-in white LEDs switchable with included software
• Built-on adjustable polarizer

MicroTouch:

• Touch sensitive static sensor trigger on the body of certain Dino-Lite models
• Can be set to On, Off or Double Touch, via included software
• Double Touch setting to help prevent accidental image capture. Simply press on the MicroTouch twice to capture an image.

Save formats:

Information about working distance and field of view

• Working Distance and Field of View Chart

Regulatory Approvals:

• CE, FCC, ROHS

Package includes:

• AD7013MZT Dino-Lite Premier digital microscope
• Polarized nozzle, a standard open faced nozzle, a sealed transparent cap
• DinoCapture 2.0 Software Installation CD
• Deluxe storage bag

Options:

• MS35B - suggested for frequent/continuous change of focus/magnification
• MS36B - similar to MS35B but also offers 10" extendable horizontal reach
• Recommended stands

Additional Information:

• Polarizing kit can be switched on/off or can be adjusted to offer full or half polarization
• The USB connection eliminates the need for interface cards or expensive software
• The software for the collection and processing of photos is included
• Software is easy and convenient to load and use
• Automatic or manual color balance and brightness, control

Minimum Product Requirements:

• OS: Windows 7 ,Vista ,XP or Windows Server 2003 (DinoCapture 2.0 software)
• MAC OS 10.4 or later (DinoXscope software)
• USB 2.0 port
• CPU: 1.5GHz Pentium 4 or equivalent AMD Athlon processor or faster
• HD: At least 200MB available HD space
• RAM: 1GB RAM (1.5 require for Windows Vista,7) and above
• Graphics card: 128MB video card or above
• CD-ROM driver for installation
