THIẾT BỊ ĐO ĐỘ BÓNG-Glossmeters 480
Giá : Liên hệ
MASP : Elcometer 480
Nhà sản xuất : ELCOMETER
Small, robust & ergonomic 3 - 10 readings per second Repeatable, reproducible & accurate Multiple angles; 20°, 60°, 85° 40,000 reading memory in up to 2,500 batches Date and time stamped readings USB & Bluetooth® data output PC, iPhone or Android™ compatible Automatic gauge & tile diagnostics Auto calibration tile recognition via RFID (Radio Frequency Identification; patent applied for) 40 user definable limit standards Standard, auto repeat and scan modes Differential mode with pass/fail Display readings, statistics, graphs & batch review

Chi tiết Sản phẩm

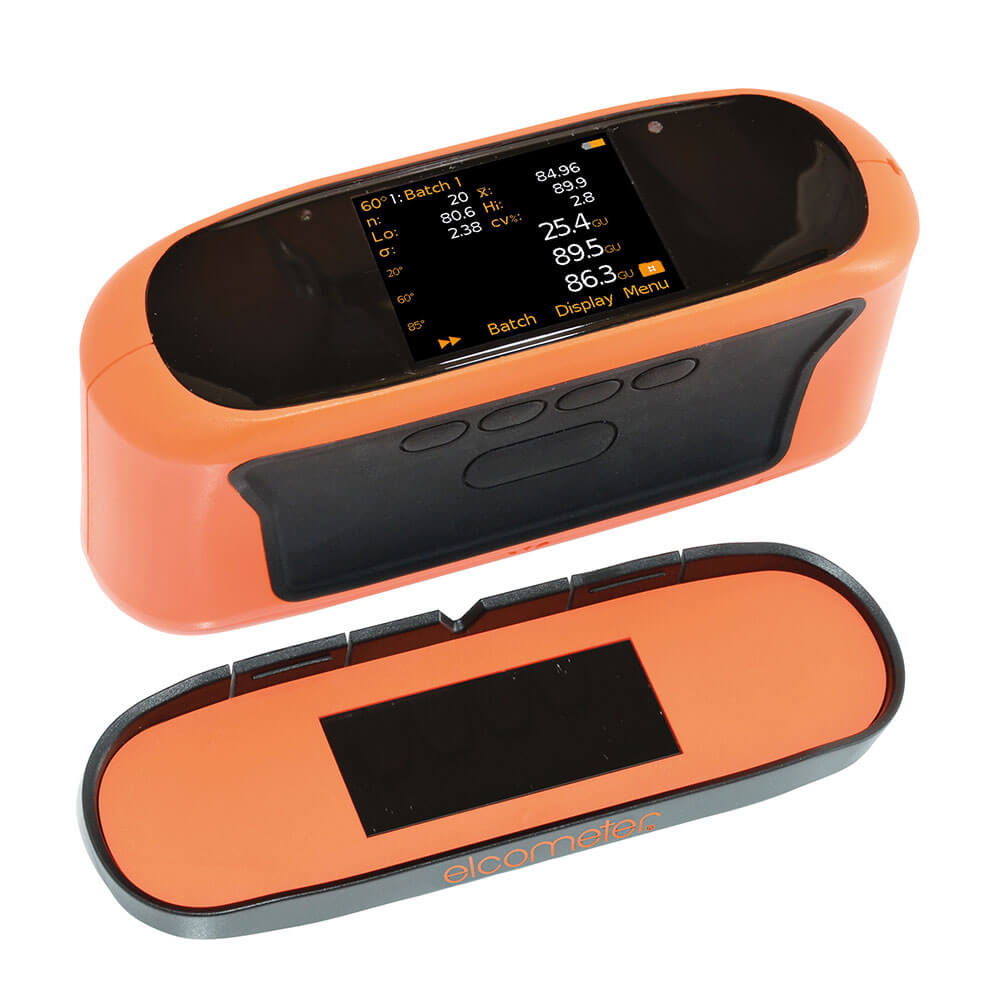

Elcometer 480 Single, Dual & Triple Angle Glossmeters

The Elcometer 480 range are easy to use glossmeters which combine high accuracy, repeatability and reproducibility with functionality making them the most advanced glossmeters on the market today.

	Small, robust & ergonomic 3 - 10 readings per second Repeatable, reproducible & accurate Multiple angles; 20°, 60°, 85° 40,000 reading memory in up to 2,500 batches Date and time stamped readings USB & Bluetooth^® data output PC, iPhone or Android™ compatible Automatic gauge & tile diagnostics Auto calibration tile recognition via RFID (Radio Frequency Identification; patent applied for) 40 user definable limit standards Standard, auto repeat and scan modes Differential mode with pass/fail Display readings, statistics, graphs & batch review


Please visit the Elcometer 480 dedicatedwebsite at www.elcometer480.com

Small, robust and ergonomic, the Elcometer 480 range of glossmeters have been designed to exceed the demands of industry today.

Combining easy to use, multi-lingual menu structures with exceptional repeatability, reproducibility & accuracy, the Elcometer 480 provides users with best in class hand held gloss measurement.

Using state of the art design and manufacturing techniques provides world leading features and functionality - reliably measuring & recording Gloss, % Reflectance & Haze on any material, including paint, plastic, ceramic or metal.

The Elcometer 480's rapid LED technology accurately measures up to 3 angles at the same time at a rate of 10 readings per second.

Measurements can be instantly transferred to PC, iPhone, Android™ or other mobile devices via USB or Bluetooth^®.

Using the ElcoMaster™ software, professional reports for gloss and other appearance measurements can be quickly generated. Alternatively gloss readings can be combined with other key measurement parameters such as coating thickness, adhesion and oven temperature profile - within the same software package.

The Model Range
The Elcometer 480 is available as either a simple entry level 60° glossmeter or state of the art Single, Dual or Triple angle variants.
	The Elcometer 480 is available with (Model T) or without (Model B) memory. The Elcometer 480 Model B is a 60° unit, Model T gauges are available as single, dual or triple angle variants with %Reflectance and Haze.

Accuracy & Repeatability
Advanced electronics and a superior optical design combines highly accurate, repeatable and reproducible measurements with industry leading inter-instrument agreement - across its entire 0-2,000GU range.
Range	0-10GU	10-100GU	100-2000GU
Repeatability	±0.1GU	±0.2GU	±0.2%
Reproducibility	±0.2GU	±0.5GU	±0.5%

Calibration and Diagnostics

	Every Elcometer 480 Gloss Tile is fitted with an RFID (radio frequency identification) tag which allows automatic identification of the tile's serial number and calibration data when the tile is attached to the base of the gauge.

Additional calibration tiles are available from the range of Elcometer 480 accessories. Click on the Accessories tab to find out more.

Low Gloss Tile (22GU at 60°)	Mid Gloss Tile (55GU at 60°)	High Gloss Tile (97GU at 60°)	Mirror Gloss Tile (1900GU at 20°)

Measurement Speed
The Elcometer 480's rapid LED technology accurately and repeatably measures up to 3 angles at the same time.

Standard Mode	1+ reading per second, (70+ readings per minute); < 0.3 seconds per angle
Auto Repeat Mode	3 readings per second, (180 readings per minute); ~ 0.1 seconds per angle
Scan Mode	10 readings per second, (600 readings per minute); ~ 0.03 seconds per angle

Display Modes
Fully customisable, scratch and solvent resistant colour LCD allows the user to display: Gloss, % Reflectance or Haze readings Statistics Readings and Differential with pass/fail Trend Graph Analogue Scan Bar
