thiết bị đo độ ẩm Testo 635-1

Sản Phẩm

thiết bị đo độ ẩm Testo 635-1
Giá : Liên hệ
MASP : 635-1
Nhà sản xuất : TESTO JAPAN

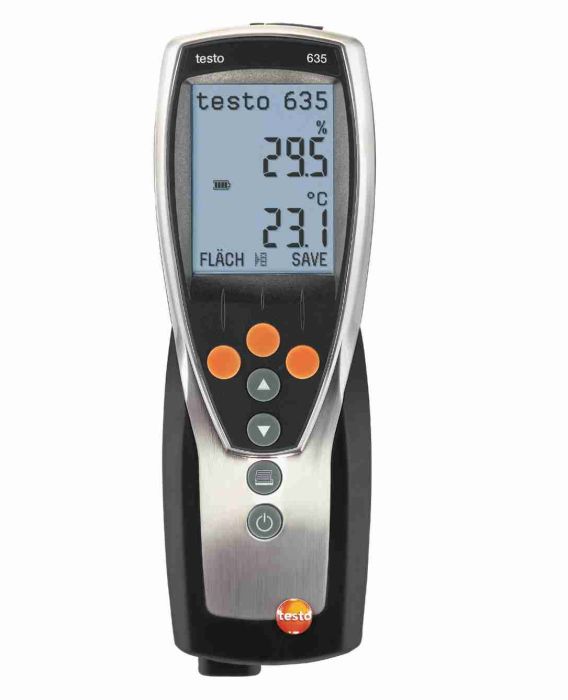

The testo 635-1 for measuring air moisture, material equilibrium moisture and pressure dewpoint in compressed air systems. Up to 3 temperature or humidity probes can be displayed; data transmission is radio-controlled, i.e. wireless. Measurement data can be transmitted by infrared to the Testo printer. It is also possible, during cyclical printing, to print measurement data once every minute, for example. testo 635-1 immediately displays the dewpoint difference between ambient air and the wall surface when analysing moisture on walls and ceilings. There are precision probes up to -60°C tpd available to inspect pressure dewpoint in compressed air systems. The humidity sensor developed by Testo has proven itself world-wide and has outstanding features in terms of precision, long-term stability, temperature resistance and robustness.

Chi tiết Sản phẩm

Temperature - NTC

Technical data
Measuring range	-40° to 302 °F / -40 to +150 °C
Accuracy	±0.4 °F (-13° to 166.8 °F) / ±0.2 °C (-25 to +74.9 °C) ±0.7 °F (-40.0° to -13.2 °F) / ±0.4 °C (-40 to -25.1 °C) ±0.7 °F (167° to 211.8 °F) / ±0.4 °C (+75 to +99.9 °C) ±0.5 % of mv (Remaining Range)
Resolution	0.1 °F / 0.1 °C

Temperature - Type K TC

Technical data
Measuring range	-328.0° to 2498 °F / -200 to +1370 °C
Accuracy	±0.5 °F (-76° to 140 °F) / ±0.3 °C (-60 to +60 °C) ±(0.4 °F + 0.3 % of mv) (Remaining Range) / ±(0.2 °C + 0.3 % of mv) (Remaining Range)
Resolution	0.1 °F / 0.1 °C

Humidity - Capacitive

Technical data
Measuring range	0 to +100 %rH
Accuracy	See probe data
Resolution	0.1 %rH

Absolute Pressure

Technical data
Measuring range	0.0 hPa to +800.0 InH₂O / 0 to 2000 hPa
Accuracy	See probe data
Resolution	0.0 InH₂O / 0.1 hPa

General technical data

Technical data
Housing	ABS / TPE / Metal
Warranty	2 years
Battery type	Alkaline, type AA
Battery life	200 h
Storage temperature	-22° to 158 °F / -30 to +70 °C
Weight	15 oz. / 428 g
Dimensions	9 x 3 x 2 in. / 220 x 74 x 46 mm
Operating temperature	-4° to 122 °F / -20 to +50 °C

Localising mould

Damp ceilings and walls may be a result of structural damage. In most cases, however, it is a sign of improper ventilation. Once the mould appears inside a house, the tenant assumes that moisture has come in from outside. Numerous disputes have erupted because of the issue of who is liable for the mould damage. However, it is difficult to find out who or what has caused the mould: the tenant or faulty structural design?

Testo 635-1 is ideal for measuring moisture in ceilings and walls. Using the optional attachment temperature/moisture probe and optional surface temperature probe, the testo 635 automatically calculates the dew point distance. It provides initial information about whether mould is being caused by condensation, or from moisture ingress due to structural damage or faulty insulation.

Top

Monitoring production and storage conditions

Our temperature/humidity measuring instruments are used around the world in production, storage and server rooms, museums, archives, cold storage warehouses, containers and sales counters.

Manufacturers, carriers, or dealers of sensitive products must ensure that specified temperature or humidity values are observed during production and storage. The testo 635 offers the option of performing spot measurements in relevant places.

The temperature/humidity measuring instrument testo 635-2 offers the user a wide range of humidity/moisture probes. It provides the option of measuring humidity, material moisture and U-value (for the thermal assessment of structural components). In addition to the standard probes, up to three radio probes can be connected to the device in parallel. Measurement results can be analysed, stored and documented using the supplied PC software.
