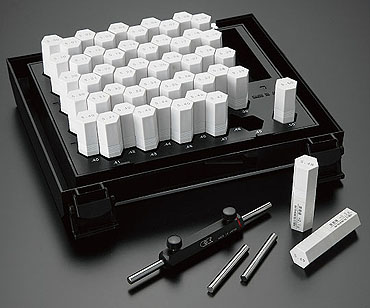

PIN GAUGE EISEN EP SERIES
- Giá : Liên hệ
- MASP : EP-1A
- Nhà sản xuất : EISEN
- DỤNG CỤ CĂN CHUẨN ĐƯỜNG KÍNH LỖ PIN GAUGE BỘ MODEL: EP-1A
Chi tiết Sản phẩm
Thông Số Kỹ Thuật
All pin gauges are 58 HRC or harder.
Class-0
|
Set Range(mm) |
Length(mm) |
Tolerance |
Roundness |
Cylindricity |
|
0.20mm ~ 0.99mm |
40.00 |
±0.5μm |
0.3μm |
0.15μm |
|
1.00mm ~ 10.00mm |
50.00 |
±0.5μm |
0.3μm |
0.15μm |
·
Class-1
|
Set Range(mm) |
Length(mm) |
Tolerance |
Roundness |
Cylindricity |
|
0.05mm ~ 0.99mm |
40.00 |
±1μm |
0.8μm |
0.8μm |
|
1.00mm ~ 10.00mm |
50.00 |
±1μm |
0.8μm |
0.8μm |
|
10.01mm ~ 20.00mm |
50.00 |
±1.5μm |
1.3μm |
1.3μm |
· Details of series
|
Set No. |
Step(mm) |
Set |
Number |
|
EP-00 |
0.01mm |
0.05 0.06… 0.19 0.20 |
16 |
|
EP-0A |
0.01mm |
0.20 0.21… 0.49 0.50 |
31 |
|
EP-0B |
0.01mm |
0.50 0.51… 0.99 1.00 |
51 |
|
EP-1A |
0.01mm |
1.00 1.01… 1.49 1.50 |
51 |
|
EP-1B |
0.01mm |
1.50 1.51… 1.99 2.00 |
51 |
|
EP-2A |
0.01mm |
2.00 2.01… 2.49 2.50 |
51 |
|
EP-2B |
0.01mm |
2.50 2.51… 2.99 3.00 |
51 |
|
EP-3A |
0.01mm |
3.00 3.01… 3.49 3.50 |
51 |
|
EP-3B |
0.01mm |
3.50 3.51… 3.99 4.00 |
51 |
|
EP-4A |
0.01mm |
4.00 4.01… 4.49 4.50 |
51 |
|
EP-4B |
0.01mm |
4.50 4.51… 4.99 5.00 |
51 |
|
EP-5A |
0.01mm |
5.00 5.01… 5.49 5.50 |
51 |
|
EP-5B |
0.01mm |
5.50 5.51… 5.99 6.00 |
51 |
|
EP-6A |
0.01mm |
6.00 6.01… 6.49 6.50 |
51 |
|
EP-6B |
0.01mm |
6.50 6.51… 6.99 7.00 |
51 |
|
EP-7A |
0.01mm |
7.00 7.01… 7.49 7.50 |
51 |
|
EP-7B |
0.01mm |
7.50 7.51… 7.99 8.00 |
51 |
|
EP-8A |
0.01mm |
8.00 8.01… 8.49 8.50 |
51 |
|
EP-8B |
0.01mm |
8.50 8.51… 8.99 9.00 |
51 |
|
EP-9A |
0.01mm |
9.00 9.01… 9.49 9.50 |
51 |
|
EP-9B |
0.01mm |
9.50 9.51… 9.99 10.00 |
51 |
|
EP-10A |
0.01mm |
10.00 10.01… 10.49 10.50 |
51 |
|
EP-10B |
0.01mm |
10.50 10.51… 10.99 11.00 |
51 |
|
EP-11A |
0.01mm |
11.00 11.01… 11.49 11.50 |
51 |
|
EP-11B |
0.01mm |
11.50 11.51… 11.99 12.00 |
51 |
|
EP-12A |
0.01mm |
12.00 12.01… 12.49 12.50 |
51 |
|
EP-12B |
0.01mm |
12.50 12.51… 12.99 13.00 |
51 |
|
EP-13A |
0.01mm |
13.00 13.01… 13.49 13.50 |
51 |
|
EP-13B |
0.01mm |
13.50 13.51… 13.99 14.00 |
51 |
|
EP-14A |
0.01mm |
14.00 14.01… 14.49 14.50 |
51 |
|
EP-14B |
0.01mm |
14.50 14.51… 14.99 15.00 |
51 |
|
EP-15A |
0.01mm |
15.00 15.01… 15.49 15.50 |
51 |
|
EP-15B |
0.01mm |
15.50 15.51… 15.99 16.00 |
51 |
|
EP-16A |
0.01mm |
16.00 16.01… 16.49 16.50 |
51 |
|
EP-16B |
0.01mm |
16.50 16.51… 16.99 17.00 |
51 |
|
EP-17A |
0.01mm |
17.00 17.01… 17.49 17.50 |
51 |
|
EP-17B |
0.01mm |
17.50 17.51… 17.99 18.00 |
51 |
|
EP-18A |
0.01mm |
18.00 18.01… 18.49 18.50 |
51 |
|
EP-18B |
0.01mm |
18.50 18.51… 18.99 19.00 |
51 |
|
EP-19A |
0.01mm |
19.00 19.01… 19.49 19.50 |
51 |
|
EP-19B |
0.01mm |
19.50 19.51… 19.99 20.00 |
51 |
