Overtorque Prevention Slip Type Preset Torque Wrench
Direction
Preset with Ratcheting Head Style
No External Scale, Torque Value is Set Using Key & Tester
Cam-Link Mechanism Generates 45 degree slip
Even if additional force is applied, tool will not add additional torque beyond click
No torque variation by gripping point
Chi tiết Sản phẩm
QSPCA
QSPCAMS/LS & QSPCAFH
Overtorque Prevention Slip Type Preset Torque Wrench
Preset with Ratcheting Head Style
No External Scale, Torque Value is Set Using Key & Tester
Cam-Link Mechanism Generates 45 degree slip
Even if additional force is applied, tool will not add additional torque beyond click

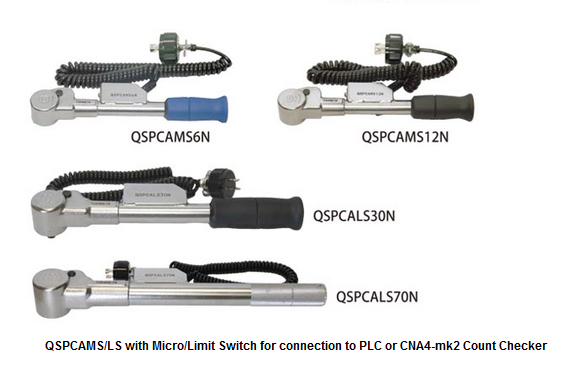

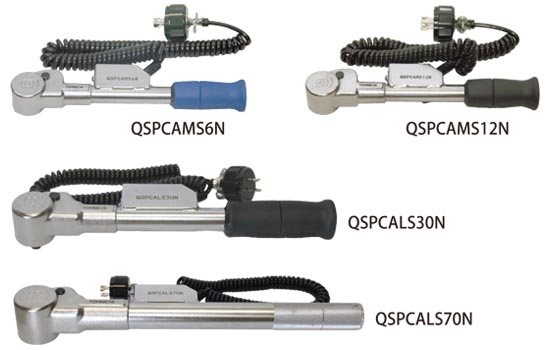

QSPCAMS/LS with Micro/Limit Switch for connection to PLC or CNA4-mk2 Count Checker
QSPCAFH with wireless transmitter
Preset Style wrenches require adjusting key to change torque set and tester to confirm torque. Slip type has cam action which has 45 degree free zone preventing overtorque after torque 'click" is achieved.
Specifications
Model (Basic)
Model with Micro Switch
Model with Transmitter
Torque Range
Overall Lgth.
Square Drive
Weight Basic
Weight MS/LS Vers.
Accuracy
Grip
Adjusting Key
Min.-Max.
S.I.
Metric
American
mm
mm
in.
kg
% of setting
Type
#
NM
kgf.cm
lbf.in.
QSPCA6N
QSPCAMS6N
Upon Request
2-6
20-60
20-50
197
6.35
1/4
0.33
0.45
+/-6%
Blue Rubber
931
QSPCA12N
QSPCAMS12N
Upon Request
4-12
40-120
40-100
+/-4%
Black Rubber
QSPCA30N
QSPCALS30N
QSPCAFH30N
10-30
100-300
90-270
267
9.53
3/8
0.64
0.81
930
QSPCA70N
QSPCALS70N
QSPCAFH70N
20-70
200-700
180-620
346
1.24
1.41
Knurled Metal
.
If you do not have a tester, Tohnichi America can set torque for a nominal fee. Please request at time of order.
Tool will need torque set prior to use with adjusting key and tester (sold separately)
