MÁY KIỂM TRA TỪ TRƯỜNG KANETEC TESTA TM-801

Sản Phẩm

MÁY KIỂM TRA TỪ TRƯỜNG KANETEC TESTA TM-801
Giá : Liên hệ
MASP : TESTA TM-801
Nhà sản xuất : KANETEC
KANETEC là nhà sản xuất chuyên về các thiết bị đo, kiểm tra từ tính sản phẩm, Testa TM-801 là dòng sản phẩm Đo từ trường dư trong phôi gia công. Đo từ thông trong các sản phẩm từ tính-áp dụng.Đo từ thông của động cơ.Đo lường các đặc tính của vật liệu từ tính.

Chi tiết Sản phẩm

Large improvement of performance!
And keeping the usability of TM-701!

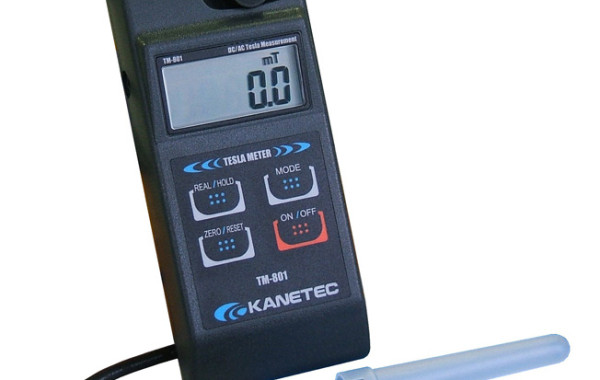

TM-801

The set contents

Industry Standard for handheld devices

The TESLA meter is a practical, handy type Gaussmeter having digital display that has been developed based on KANETEC's long experience and achievements in the manufacture of magnetism-applied products.
From the user's point of view, this meter is designed for easy use by anyone by incorporating frequently used functions only.
The external output terminal is also provided to enable digital or analog outputs. Further, the probe has been made smaller for measurement in smaller space.
[Application]

Measurement of residual magnetism in machined workpieces.
Measurement of magnetic flux in magnetism-applied products.
Measurement of magnetic flux of motors.
Measurement of properties of magnetic materials.

[Features]


INPUT TERMINAL FOR AC POWER SUPPLY		INPUT TERMINAL FOR USB

Mode Accuracy of high resolution for measurement on DC magnetic flux density, is now improved.
Range covering frequency for measuring AC magnetic flux density is expanded.(40 - 500Hz)
Sampling speed is improved 1.5 times when measuring in the hold mode.
Measuring time increases 20% for continuous operation with alkali batteries.(130 hours - 160 hours)
Tesla Meter can be operated with batteries, chargeable batteries and AC power supply.
Measured data is now read by your computer with outer digital output though USB.
Measured data is now read by your computer with outer digital output though USB.
New free sample software is newly produced to respond with Windows XP/7/8.

>Sample Programs Downloading
Measured data is now "mT" exclusively in compliance with the unit specified by the Measurement Law.
A wide range of measuring range from 0 to 3000 mT (0-30,000 G). (DC)
The high resolution measuring mode ensures more accurate measurement. (Resolution 0.01 mT = 0.1 G)
High dustproof by use of sheet keys.
The auto power off function prevents useless waste of the battery.
When the probe has been worn out, it can be replaced with a new one without troublesome calibration. (Optional)

>REFERENCE MAGNETIC FIELD FOR TESLA METER

>MEASUREMENT PROBE FOR TESLA METER

Features

[mm(in)]
Model	TM-801				Function	Zero reset	Polarity indication
						Max. detect value hold	Auto power off (can be canceled)
Detecting Contents	DC magnetic flux density AC magnetic fl ux density Polarities ( N, S ) ( 40-500Hz )				Output	USB communication port /output(analog)
Measuring	mT				Mode	Detection value	Numeric value (digital)
						Polarity	Alphabets (N/S)
Indication Range	0 - 3000.0mT				Operating Temperature	0 - +40 °C (104°F)
Measuring Mode Measuring Range Resolution Indication Accuracy	Measuring Mode	Measuring Range	Resolution	Indication Accuracy	Display	LCD
	DC X 1 *1	0 - 200.0mT	0.1 mT	± (5% of rdg.+ 3digit)	Power Source	Battery SUM-3 (1.5 V) X 4 pieces DC5-6V adapter input/ USB
		200.1 - 3000.0mT	1 mT	± (5%of rdg.+10digit)	Dimension	Height 140(5.51) X width 64(2.51) X thickness 30(1.18)
	DC X 10	0 - 300.00mT	0.01mT	± (3%of rdg.+ 5digit)	Mass	Approx. 250 g/0.55 lb (including batteries and probe)
	AC *1	0 - 150.00mT	0.01 mT	± (5%of rdg.+20digit)	Accessories	Probe, batteries and carrying case
		150.1 - 300.0mT	0.1 mT		Option	Axial probe (TM-801AXL)
		301.0 - 1500.0mT	1mT			Reference magnetic field for Tesla Meter(TM-SMF)
	*The measuring ranges are automatically selected.				Note: This product is not designed for measurement of electromagnetic waves.
