Máy đo độ rung - Rion VM-82
Giá : Liên hệ
MASP : VM-82
Nhà sản xuất : RION
The vibration meter VM-82 is designed for a wide range of industrial applications. It is particularly suited for routine maintenance and monitoring of rotational machinery, as well as for performance testing during machine development. Acceleration (ACC), velocity (VEL), and displacement (DISP) can be easily measured using a suitable frequency range, allowing comprehensive and precise evaluation of machine vibrations. The large LCD panel containing a numeric readout as well as a bar graph type meter lets the user check vibration fluctuations at a glance. Measurement results can be printed and stored in the internal memory of the unit, for later data processing using a computer. For a wide range of industrial applications Particularly suited for routine maintenance and monitoring of rotational machinery Performance testing during machine design and development Acceleration (ACC), velocity (VEL), and displacement (DISP) can be easily measured Compact and light weight: only 320 grams including batteries

Chi tiết Sản phẩm

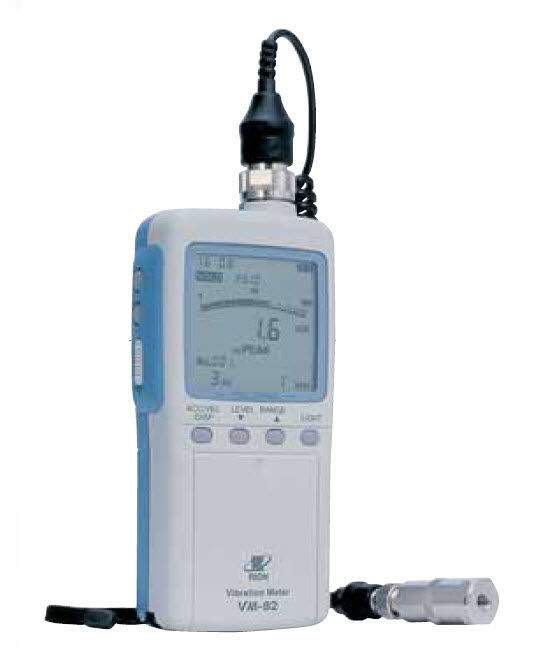

RION Vibration Meter VM-82

The vibration meter VM-82 is designed for a wide range of industrial applications. It is particularly suited for routine maintenance and monitoring of rotational machinery, as well as for performance testing during machine development.

Acceleration (ACC), velocity (VEL), and displacement (DISP) can be easily measured using a suitable frequency range, allowing comprehensive and precise evaluation of machine vibrations.

The large LCD panel containing a numeric readout as well as a bar graph type meter lets the user check vibration fluctuations at a glance. Measurement results can be printed and stored in the internal memory of the unit, for later data processing using a computer.

For a wide range of industrial applications
Particularly suited for routine maintenance and monitoring of rotational machinery
Performance testing during machine design and development
Acceleration (ACC), velocity (VEL), and displacement (DISP) can be easily measured
Compact and light weight: only 320 grams including batteries

Specification
Accelerometer	IPV-57 (supplied) Shear-type piezoelectric accelerometer (with integrated preamplifier)
Measurement range (with PV-57)	Acceleration (ACC): 0.02 to 200m/s(m/s² (0.002-20G), EQ PEAK 1Hz to 5kHz Velocity (VEL): 0.3 to 1000mm/s RMS (3 Hz to 1kHz), 0.1 to 1000mm/s RMS (10 Hz to 1 kHz) Displacement (DISP): 0.02 to 100mm EQ PEAK 3Hz to 500Hz, 0.001 to 100mm EQ PEAK 10Hz to 500 Hz
Indication Parameters	Acceleration: EQ, PEAK, RMS Velocity: RMS, EQ PEAK Displacement: EQ PEAK, EQp-p, RMS
Frequency Range	Acceleration: 3 to 20kHz Velocity: 10 Hz to 1kHz Displacement: 3 Hz to 500 Hz Acceleration: 3 to 20kHz Velocity: 10 Hz to 1kHz Displacement: 3 Hz to 500 Hz
Display	Backlit LCD Numerical Range: 3 digits, 001 to 128 Bar graph display: Logarithmic scale, 1 to 100% of full-scale
Output	AC/DC output: Range full-scale 1V
Interface	Serial Interface, Printer Interface
Power Requirement	DC: Four IEC R6 (size "AA") batteries Battery life: LR6 (alkaline) approx. 30 h / R6P (manganese) approx. 14h AC: AC adapter NC-34 series (Option)
Dimensions and Weight	168 (W) X 76 (H) X 35 (D) mm Approx. 320 g (incl. 4 pcs. of R6P batteries)
