Máy đo độ nhám bề mặt MITUTOYO SJ-210

Máy đo độ nhám bề mặt MITUTOYO SJ-210
Giá : Liên hệ
MASP : SJ-210
Nhà sản xuất : MITUTOYO JAPAN

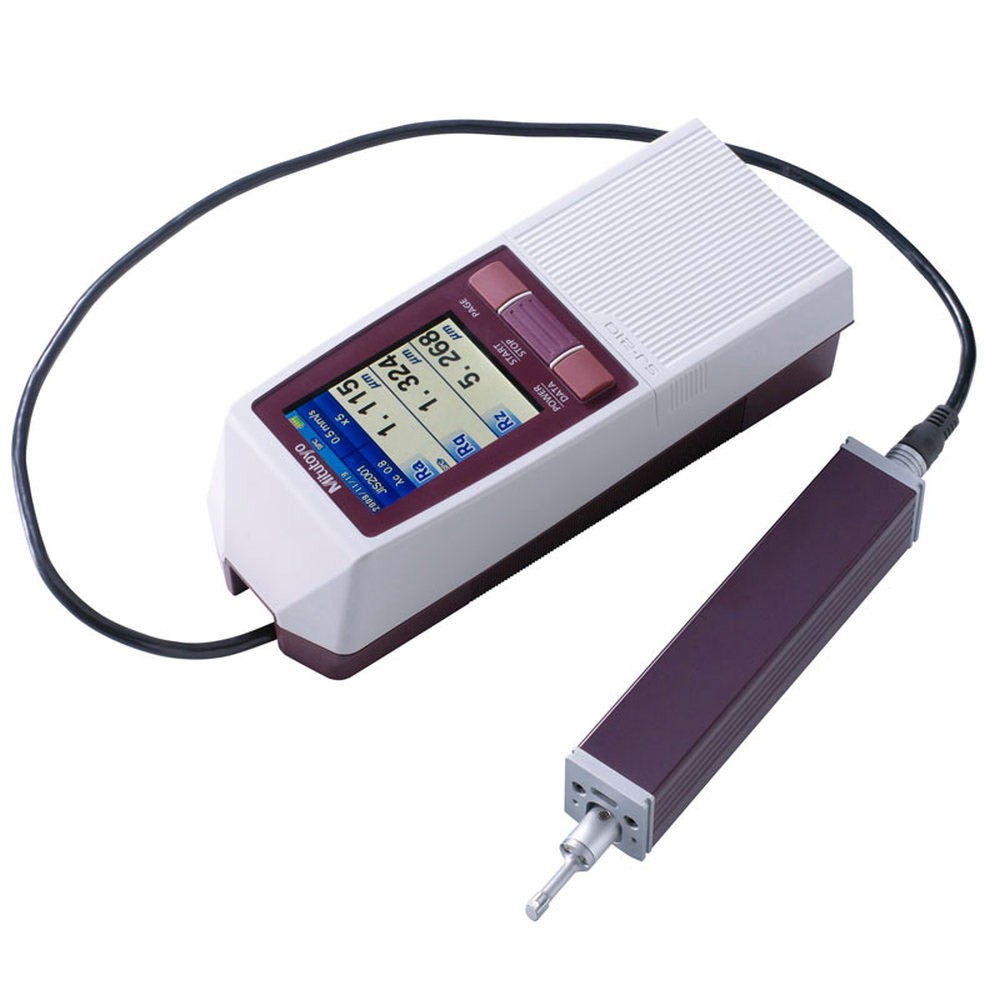

Máy đo độ nhám bề mặt SJ-210, 178-561-02E, Mitutotoyo, Portable Surface Roughness Tester, Surftest SJ-210

Drive unit type	Standard
Detector type	4mN measuring force, 5μm stylus tip radius
Standards met	JIS (1982, 1994, and 2001), ISO 1997, VDA, and ANSI
Measuring range	X-axis: .69 inches (17.5mm); Z-axis 14200 μin (-7900μin ~+6300μin)/360μin /.08μin (25μm / 0.002μm)
Resolution	14170μin /.8μin (360μm / 0.02μm), 4000μin /.2μin (100μm /0.006μm), 1000μin /.08μin (25μm / 0.002μm)
Assessed profile	Primary profile (P), roughness profile (R), DIN4776 [Primary profile (P), Roughness profile (R), MOTIF (R): M-type
Parameters	Rv, Rsk, Rku, Rc, RPc, RSm, Rmax, Rz1max, RzJIS, Rppi, RΔa, RΔq, Rlr, Rmr, Rδ, ς, HSC, Rpm, tp, Htp, Ra, Ry, Rz, Rq, S, Sm, Pc, R3z, mr ©, Rt, Rp, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo (customizable)(R, AR, Rx: M-type)
Overall dimensions	52.1 x 65.8 x 160 mm / 2.05 x 2.6 x 6.3 inches (H x W x D)
Weight	1.1 lb (500g) including display unit, drive unit, and detector

The 2.4=inch color graphic LCD provides excellent readability and an intuitive display that is easy to negotiate. The LCD also includes a backlight for improved visibility in dark environments.
The Surftest SJ=210 can be operated easily using the buttons on the front of the unit and under the sliding cover.
Up to 10 measurement conditions and one measured profile can be stored in the internal memory.
An optional memory card can be used as an extended memory to store large quantities of measured profiles and conditions.
Access to each feature can be password=protected, which prevents unintended operations and allows you to protect your settings.
The display interface supports 16 languages, which can be freely switched.
An alarm warns you when the cumulative measurement distance exceeds a preset limit.
The Surftest SJ=210 complies with the following standards: JIS (JIS=B0601=2001, JIS=B0601=1994, JIS B0601=1982), VDA, ISO= 1997, and ANSI.
In addition to calculation results, the Surftest SJ=210 can display sectional calculation results and assessed profiles, load curves, and amplitude distribution curves.
