MÁY ĐO BỀ DÀY LỚP PHỦ

Sản Phẩm

MÁY ĐO BỀ DÀY LỚP PHỦ
Giá : Liên hệ
MASP : KETT-LE-200J
Nhà sản xuất : KETT JAPAN
DỤNG CỤ ĐO BỀ DÀY LỚP PHỦ SƠN, VẬT LIỆU TỪ TÍNH HOẶC PHI TỪ TÍNH

Chi tiết Sản phẩm

Electromagnetic Coating Thickness Tester
LE-200J

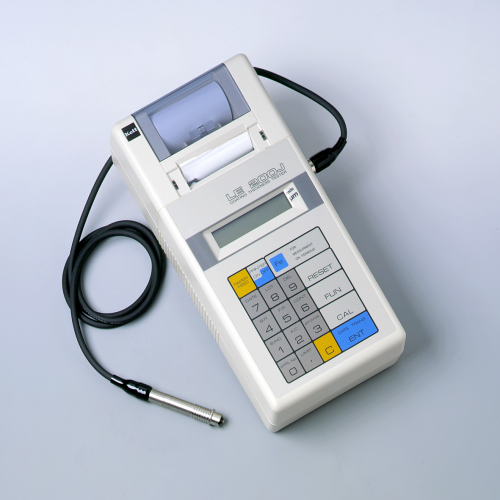

The LE-200J is a portable coating thickness tester with a built-in printer. This unit can accurately and quickly measures many items such as magnetic plating (electrolyzed nickel plating not included), coating, painting, and lining without injuring or damaging the item. Furthermore, you can print out the measurement results on-site with the internal printer.

●Specifications	LE-200J
Measurement Method	Electromagnetic induction
Applications	Non-magnetic coating on iron and steel (ferrous) substrates
Measurement Range	0-1500µm or 60.00mils
Measurement Precision	Under 15µm: ±0.3µm, 15µm or greater: ±2%
Resolution	0.1µm (less than 100µm), 1.0µm (100µm or greater)
Conformity Standard	JIS K5600-1-7、JIS H8501、JIS H0401 / ISO 2808、ISO 2064、ISO 1460、ISO 2178、ISO 19840 / BS 3900-C5 / ASTM B 499、ASTM D 7091-5
Statistical Functions	Number of measurements, Average value, Standard deviation, Maximum value, Minimum value, Block numbers
Probe	One-point contact fixed pressure (LEP-J)
Display Format	Digital(LCD, smallest displayed unit 0.1µm)
Output	RS-232C interface(transmission speed-2400bps)
Power Source	AC100V-220V (50/60Hz) or 1.5 ("AA" size Alkaline batteries) x 6 (main unit), Printer ("AA" size Alkaline batteries) x 4
Dimensions & Weight	120(W)X250(D)X55(H)mm, Net 1.0kg
Accessories	Calibration foils, Iron substrate, Batteries (1.5V, "AA" size Alkaline), Probe adapter, AC adapter, Printer paper, Carrying case
Options	L Probe LEP-21L(Probe for use on the inside surface of pipes),Data Management Software "McWave Series" and "MultiProp" (McWave Series and MultiProp are products of CEC Co.)
