Máy Đo 3 Chiều Crysta-Plus M574

Máy Đo 3 Chiều Crysta-Plus M574
Giá : Liên hệ
MASP : Crysta-Plus M443/574/7106 Series 196-Manual-Floating Type CMM
Nhà sản xuất : MITUTOYO JAPAN

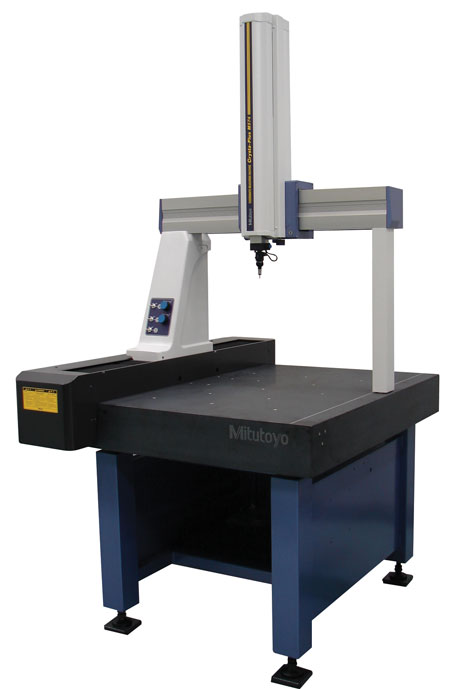

Manual floating type CMMs developed in quest for high-accuracy, low-cost and easy operation. The Crysta-Plus M is suitable to measure a wide range of applications from a simple dimension to complex form. The scale systems on Mitutoyo high-precision models utilizes a high-performance linear encoder (manufactured by Mitutoyo), for detecting axis position. In addition, various technologies have been utilized in the structure, part processing, and assembly to provide high accuracy measurement. The Crysta-Plus M700 series has a large main unit, and is equipped with a mobile clamp so that onetouch clamping on each axis can be performed by hand. Continuous fine feed over the entire measuring range can be performed.

Series M400 Series M500 Series M700

Model	Crysta-Plus M443 Crysta-Plus M574 Crysta-Plus M7106
Measuring Range X axis Y axis 15.74” (400mm) 27.55” (700mm) Z axis 11.81” (300mm) 15.74” (400mm)	15.74” (400mm) 19.68” (500mm) 27.55” (700mm)
39.36” (1000mm)
23.62” (600mm)
Workpiece Max. workpiece height Max. table loading 396Ibs (180kg) 396Ibs (180kg)	18.89” (480mm) 23.22” (590mm) 31.49” (800mm)
1763Ibs (800kg)
Workpiece Clamping No. of M8 x 1.25” Threaded Holes	13 13 13
Machine Accuracy ISO 10360-2 (20 °C ±1 °C)	E=(3.0+4.0L/1000)µm E=(3.5+4.0L/1000)µm E=(4.5+4.5L/1000)µm
Probe Repeatability ISO 10360-2	R=4.0µm (TP20) R=4.0µm (TP20) R=5.0µm (TP20)
Environmental temperature	20 °C ±1 °C 20 °C ±1 °C 20 °C ±1 °C
Resolution Length measuring system	.00002” (0.5µm) .00002” (0.5µm) .00002” (0.5µm)
Guidance	Air bearings on all axes Air bearings on all axes Air bearings on all axes
Measuring Table Material Dimensions 24.56” x 51.97” (624 x 805mm) 30.07” x 46.25” (764 x 1175mm)	Granite Granite Granite
35.43” x 68.50” (900 x 1740mm)
Air supply Consumption/air pressure	1.76 CFM @ 51 PSI (ca. 50 l/min @ 0.35 MPa) 1.76 CFM @ 51 PSI (ca. 50 l/min @ 0.35 MPa) 1.76 CFM @ 58 PSI (ca. 50 l/min @ 0.4 MPa)
Dimensions Width Depth 41.22” (1047mm) 56.45” (1434mm) Height 77.44” (1967mm) 89.25” (2267mm)	38.62” (981mm) 44.17” (1122mm) 57.48” (1460mm)
76.77” (1950mm)
111.81” (2840mm)
Mass (with supporting table)	904Ibs (410kg) 1424Ibs (646kg) 3968Ibs (1800kg)
