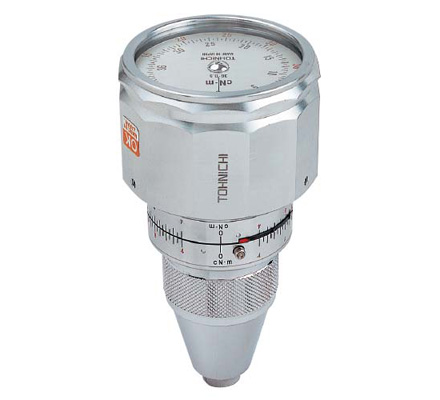

For measurement of micro torque and calibration of torque tools.
- Two Body Sizes: ATG smaller and BTG larger coodinate with torque ranges
- Accuracy +/-2% of indicated value
- Side and Top Memory Pointers (Smallest ATG models do not have memory ptrs due to very low torque)
- Three fingered keyless threaded chuck (Aluminum version standard)
- ATG plastic (#322) or metal chuck (#321) available as optional accessory
- Bi-Directional loading
- 270 degrees of rotation with stopper to prevent over-loading
- Includes plastic storage case and certificate of calibration
|
|
| |
|
|
| |
|
|
| |
Select proper model according to unit of measure as following color code : Click model to purchase |
|
| |
| S.I. = |
|
|
Metric = |
|
|
American = |
|
|
Accuracy ±2% of indicated value
|
|
| |
|
|
| |
 |
|
| |
- Memory pointer on side and on top of dial face are standard
- ATG045CN, 45ATG and ATG06Z are provided without side or top memory pointer due to very low torque value.
- Other chuck options are available for ATG (see chart below). Aluminum chuck is standard for both ATG and BTG models.
.
Optional Chuck Selection for ATG
| Part Number |
Description |
Applicable Models |
| 00T45502A |
Plastic Chuck with Metal Teeth |
All ATG Models |
| #322 |
All Plastic Chuck |
| #321 |
All Steel Chuck |
Purchase
Dimensions
|
|
| |
| Model |
Memory Pointer Knob
|
L' |
D |
Chuck Grip |
D1 |
Body |
| d |
L1 |
| ATG |
-- |
89mm |
43.5mm |
1~6.5mm |
35mm |
51mm |
| ATG-S |
5mm |
104mm |
| BTG |
-- |
119mm |
64.2mm |
1~8.5mm |
53mm |
67mm |
| BTG-S |
3mm |
135mm |
|
