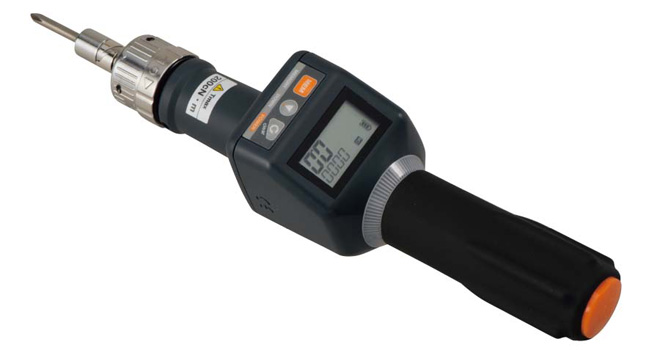

Digital Torque Screwdriver

STC2-G / STC2-G-BT

Ideal for measuring or tightening torque applications
Portable and convenient method to confirm torque settings of torque screwdrivers.
New Judgment Feature: Light indicator and buzzer alerts:
- In Tightening Mode, tool has light indicator (and buzzers) that alerts user to status:
  - White: approaching target torque at 80%, Blue: achieved target torque, and Yellow / Red: over torque
- In Measuring Mode, inspection results are indicated :
  - Blue: within hi/lo judgment parameters, Yellow / Red: outside hi/lo judgment parameters
New Lithium-ion Battery for up to 30 Hrs Continuous Use
New Expanded Memory Capacity: 1000 Data Memory Storage
New USB port for easy downloading
New digital display that can be programmed to alter display according to usage viewpoint
Features Ratcheting Direction Control
Accepts standard 1/4 hex root shape bits (sold separately See "Bit Selection" link below)
New: STC2-G-BT Version Features Bluetooth Data Transfer Function


	TDT3-G Digital Torque Driver Tester
	FTD2-S Dial Indicating Torque Screwdriver
	BTGE-G Digital Torque Gauge
	ATGE-G Digital Torque Gauge
	RTD Adjustalbe Torque Driver
	Bit Selection Standard Bits

New colored LED indicators guide user towards target torque and warns of over torque in tightening mode

Display setting can be changed so you can read it from different view points

Use STC2-G to spot check torque drivers (ex RTD with #700 bit) to confirm torque setting prior to use.

Accuracy ±1% of indicated value+ 1 digit

Standard Model	Bluetooth Model	STC2-G (Unit Selection via Keypad)								Approx. Weight
		cNm		kgf.cm.		lbf.in		ozf.in.		Kg
		Min~Max	1 Digit	Min~Max	1 Digit	Min~Max	1 Digit	Min~Max	1Digit	Kg
STC50CN2-G	STC50CN2-G-BT	10-50	0.05	1-5	0.005	1-4.4	0.0005	15-70	0.05	0.34
STC200CN2-G	STC200CN2-G-BT	40-200	0.2	4-20	0.02	4-17	0.02	N/A	N/A
STC400CN2-G	STC400CN2-G-BT	80-400	0.5	8-40	0.05	8-35	0.05	N/A	N/A

Common Specification

DATA MEMORY	1000 Data
ARITHMETIC FUNCTION	Sampling, Maximum, Minimum, Means
MEASUREMENT MODE	PEAK/RUN
USAGE DIRECTION	CW & CCW
USAGE TYPE	Measuring & Tightening
DATA OUTPUT	USB
RESET FUNCTION	Manual/Auto 0.5 - 5.0 sec. adjustable by 0.5 step.
OTHER FUNCTION	Auto power off (after 3 min.), Battery Life Indicator, Auto Zero
POWER SOURCE	Lithium-ion Battery Pack BP-7
CHARGING TIME	Via Charger: 5 Hrs, Via PC (USB): 10 Hrs
CONTINUOUS USE	Approx 30 Hrs.
OPERATING CONDITIONS [°C]	Temperature 0 ~ 40 Degrees C, no condensation
STANDARD ACCESSORIES	Quick Charger BA-7 Lithium-ion Battery Pack BP-7 USB Cable
