cần xiết lực TOHNICHI

Sản Phẩm

cần xiết lực TOHNICHI
Giá : Liên hệ
MASP : DB200N-S
Nhà sản xuất : TOHNICHI

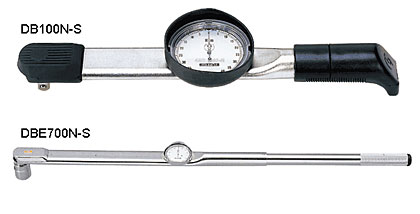

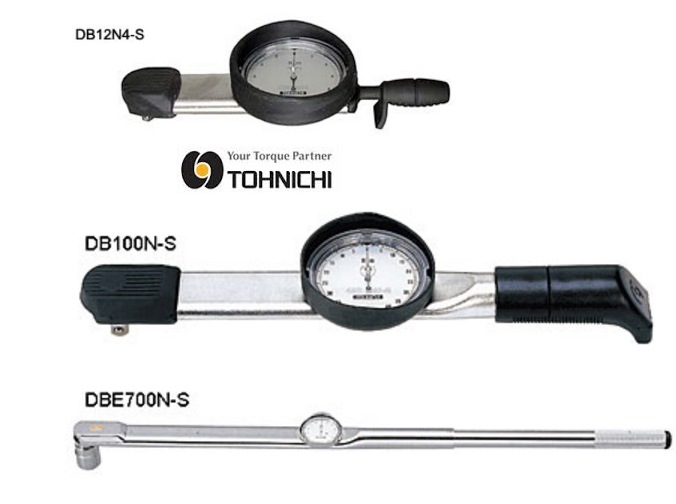

Dial Indicating Torque Wrench

Chi tiết Sản phẩm

DB/DBE/DBR

Dial Indicating Torque Wrench

Features Memory Pointer for Easy Reading
Ideal for Torque Measuring or Quality Inspections


	DOTE3-G Digital Torque Wrench Tester
	CEM3-G Digital Torque Wrench
	CDB-S Interchangeable Head Dial Torque Wrench

DB-S features main pointer and red memory pointer

Select proper model according to unit of measure as following color code :

S.I. =

Metric =

American =

Accuracy +/-3% of indicated value

Model			Torque Range						Square Drive		Dimensions [mm]											Weight approx.	Optional
			Min.-Max.			Graduation																	Carrying Case
S.I.	Metric	American	S.I.	Metric	American	S.I.	Metric	American	mm	in	L	L'	B	D	b	e	h	R	d	L1	L0	kg
DB1.5N4-S	15DB4-S	DB13I-2AS	N.m 0.2-1.5	kgf.cm 2-15	in.lbs 0-13	N.m 0.02	kgf.cm 0.2	in.lbs 0.2	6.3	1/4	170	205	77.2	69	7.5	26.5	34	14	19	N/A	95	0.4	N/A
DB3N4-S	30DB4-S	DB26I-2AS	0.3-3	3-30	0-26	0.05	0.5	0.5
DB6N4-S	60DB4-S	DB40I-2AS	0.6-6	6-60	0-40	0.1	1	0.5
DB12N4-S	120DB4-S	DB75I-2AS	1-12	10-120	0-75	0.2	2	1
New Model	New Model	New Model	3-25	30-230	0-150	0.5	5	2			200	245
DB25N-1/4-S	230DB3-1/4-S	DB150I-2AS
DB25N-S	230DB3-S	DB150I-3AS	3-25	30-230	0-150	0.5	5	2	9.53	3/8	200	245			11	29.5	40.5	18.5	30.6		110
DB50N-S	450DB3-S	DB300I-3AS	5-50	50-450	0-300			5			240	320							32		140	0.6	#846
New Model	New Model	DB600I-3AS	10-100	100-900	0-600	1	10	10			310	400										-
DB100N-3/8-S	900DB3-3/8-S
DB100N-S	900DB3-S	DB600I-4AS							12.7	1/2					14		43.5	21.5	31.3		180	0.7
-	-	DB25F-3AS	-	-	ft.lbs 0-25	-	-	ft.lbs 0.5	9.53	3/8												-
		DB50F-3AS			0-50
		DB50F-4AS							12.7	1/2
DB200N-S	1800DB3-S	DB100F-4AS	20-200	200-1800	0-100	2	20	1			410	500			14	33.2	47.2		35.4		230	1	#847
New Model	New Model	-	30-280	kgf.m 3-28	-	5	kgf.m 0.5	-			600	690			20.5	31.6	52.1				300	1.65
DB280N-1/2-S	2800DB3-1/2-S
DB280N-S	2800DB3-S	-	30-280	kgf.m 3-28	-	5	kgf.m 0.5	-	19.05	3/4
-	-	DB175F-4AS	-	-	0-175	-	-	2	12.7	1/2												-	N/A
DB420N-S	4200DB2-S	DB250F-6AS	40-420	4-42	0-250	5	0.5	5	19.05	3/4	800	890	91	81	20.5	32.6	53.1	18	34		300	2.5
DBE560N-S	5600DBE2-S	DB350F-6AS	50-560	5-56	0-350			5			1000	1100				38.6	59.1	21		732	420	4
DBE700N-S	7000DBE2-S	DB500F-6AS	70-700	7-70	0-500	10	1	10			150	1260				42.5	63	22.5	38	803.5	500	5.5
DBE850N-S	8500DBE2-S	-	100-850	10-85	-			-	25.4	1	1250	1360			26.5	37.4	63.9	25		805		6.1
DBE1000N-S	10000DBE2-S	DB800F-8AS	100-1000	10-100	0-800			10			1350	1490				32.5	59					6.4
DBE1400N-S	14000DBE2-S	DB1000F-8AS	200-1400	20-140	0-1000	20	2	10			1600	1740				41.5	68	30	34	730		8.6
DBE2100N-S	21000DBE2-S	DB1500F-8AS	200-2100	20-210	0-1500			20			2000	2140			27.5	44.8	72.3	32.5				12.8
DBE2800N-S	28000DBE2-S	DB2000F-12AS	300-2800	30-280	0-2000	50	5	20	38.1	1-1/2	2240	2380			42	57.5	99.5			722.5		16.8
DBR4500N-S	45000DBR-S	DB3000F-12AS	500-4500	50-450	0-3000			50			1200	1285	128	91		97	138	60	-	882.5		24.5
DBR6000N-S	60000DBR-S	-	600-6000	60-600	-			-	44.45	-	1500	1585			46		142		-	N/A		25.5

DBR Models are available upon request.
DB4 Models have new smaller style handle to help avoid overtorquing on low torque ranges.
DBE Models have extension handles.
Item maybe purchased through authorized local dealers and through Amazon.com (Through Amazon.com we can only validate and control items sold via "seller" Tohnichi America. Click model name above)
New Models will be available to order as of May 20, 2012 with an estimated 4-6wks lead time.

Optional Accessories:
