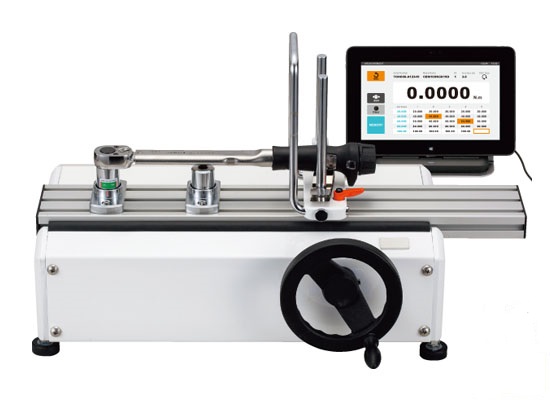

THIẾT BỊ ĐO LỰC XIẾT - DIGITAL TORQUE WRENCH
- Giá : Liên hệ
- MASP : TCC1000N2-G
- Nhà sản xuất : TOHNICHI
- Digital Torque Wrench Tester with Torque Wrench Management
Chi tiết Sản phẩm
| Model | CH | Capacity | Torque Wrench Max. Effective Length | Square Inlet Drive | Dimensions [mm] | Approx. Weight | ||||||||
| Min.-Max. | 1 Digit | Min~Max. | 1 Digit | Min. - Max. | 1 Digit | [mm] | [mm] | [in] | Length | Width | Height | [kg] | ||
| TCC100N2-G | 1 | N.m 4-100 |
N.m 0.01 |
kgf.cm. 40-1000 |
kgf.cm 0.1 |
lbf.in 35.5-885 |
lbf.in 0.1 |
575 | 12.7 | 1/2 | 714 | 388 | 375 | 35 |
| 2 | 1-25 | 0.002 | 10-250 | 0.02 | 9-220 | 0.02 | 482 | 9.53 | 3/8 | |||||
| TCC100N2-D-G | 1 | 4-100 | 0.01 | 40-1000 | 0.1 | 35.5-885 | 0.1 | 575 | 12.7 | 1/2 | ||||
| 2 | cN.m 20-600 |
cN.m 0.05 |
2-60 | 0.005 | 2-50 | 0.005 | 482 | 6.35 | 1/4 | |||||
| TCC500N2-G | 1 | 20-500 | 0.05 | 200-5000 | 0.5 | 180-4400 | 0.5 | 1035 | 19.05 | 3/4 | 1206 | 502 | 430 | 75 |
| 2 | 4-100 | 0.01 | 40-1000 | 0.1 | 36-880 | 0.1 | 769 | 12.7 | 1/2 | |||||
| TCC1000N2-G | 1 | 50-1000 | 0.1 | 500-10000 | 1 | 445-8800 | 1 | 1700 | 25.4 | 1 | 1906 | 574 | 526 | 115 |
| 2 | 20-500 | 0.5 | 200-5000 | 0.5 | 180-4400 | 0.5 | 1212 | 19.05 | 3/4 | |||||
"-D" model is for additional torque screwdriver testing. Common Specification
| DISPLAY | 10 Inch Tablet PC (Windows Based) |
| TOOL MANAGEMENT SYSTEM FUNCTION | torque wrench/driver registration data/ measurement data memory: model serial number, measurment points, count, accurancy, channel, user, past record history |
| MEASURING MODE | Click mode / Direct reading mode / Manual mode |
| ZERO ADJUSTMENT | Auto (Press C key) |
| OPERATION TEMPERATURE | 0 ~ 40 [°C]no condensation |
| POWER | AC 100V - 240V 50/60Hz |
Accessories
| Model | Hex Adapter (Width Across Flat) [mm] | Down Adapter | Ratchet Adapter (Optional) | Others |
| TCC100N2-G | square drive 12.7:steps 10, 13, 19 square drive12.7: steps 12, 14, 17 |
DA3-2 DA4-3 |
RA3 RA4 |
Standard Accessories Included: Table PC Cradle/Stand, AC Adapter for PC, Power Cable |
| TCC100N2-D-G | DA4-3 | RA4 | ||
| TCC500N2-G | square drive: 12.7 steps: 10, 13, 19 square drive : 12.7 steps 12, 14, 17 square drive: 19.05 steps: 17, 22, 27 square drive: 19.05 steps: 19, 24, 30 |
DA4-3 | RA4 | |
| DA6-4 | RA6 | |||
| TCC1000N2-G | square drive: 19.05 steps: 17, 22, 27 square drive: 19.05 steps: 19, 24, 30 square drive: 25.steps: 4, 36, 48 square drive 25.4 steps: , 41, 50 |
DA6-4 | RA6 | |
| DA8-6 | RA8 |
Dimensions
